Extruded ASTM A269 TP304 Stainless Steel Finned Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP304 Stainless Steel Extruded Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Packaging Details:	Ply-wooden Case /Iron Case
Delivery Time:	7 DAYS

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Product Name:	Extruded Fin Tube	Tube Standard:	ASTM A269, ASME SA269
Tube Material:	Stainless Steel 304	Fin Material:	Aluminium 1060
Tube OD:	10mm - 38mm	Fin OD:	70 Max.
Fin Thickness:	0.4mm Avg.	Fin Pitch:	1.8mm-10mm
Application:	Heat Exchanger, Condenser, Industry Equipment
Highlight:	Heat Exchanger Finned Tube , ASTM A269 Finned Tube , Stainless Steel Finned Tube

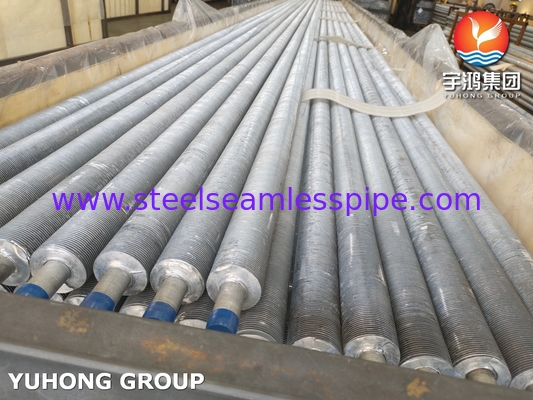

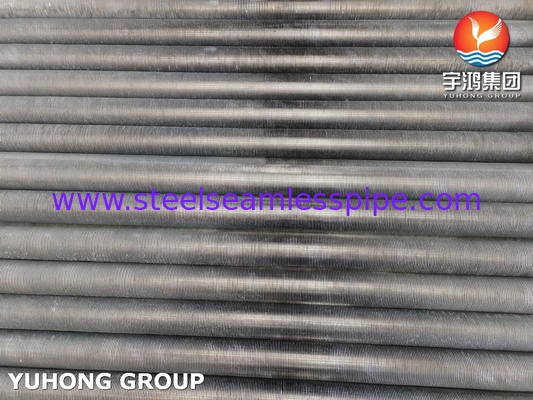

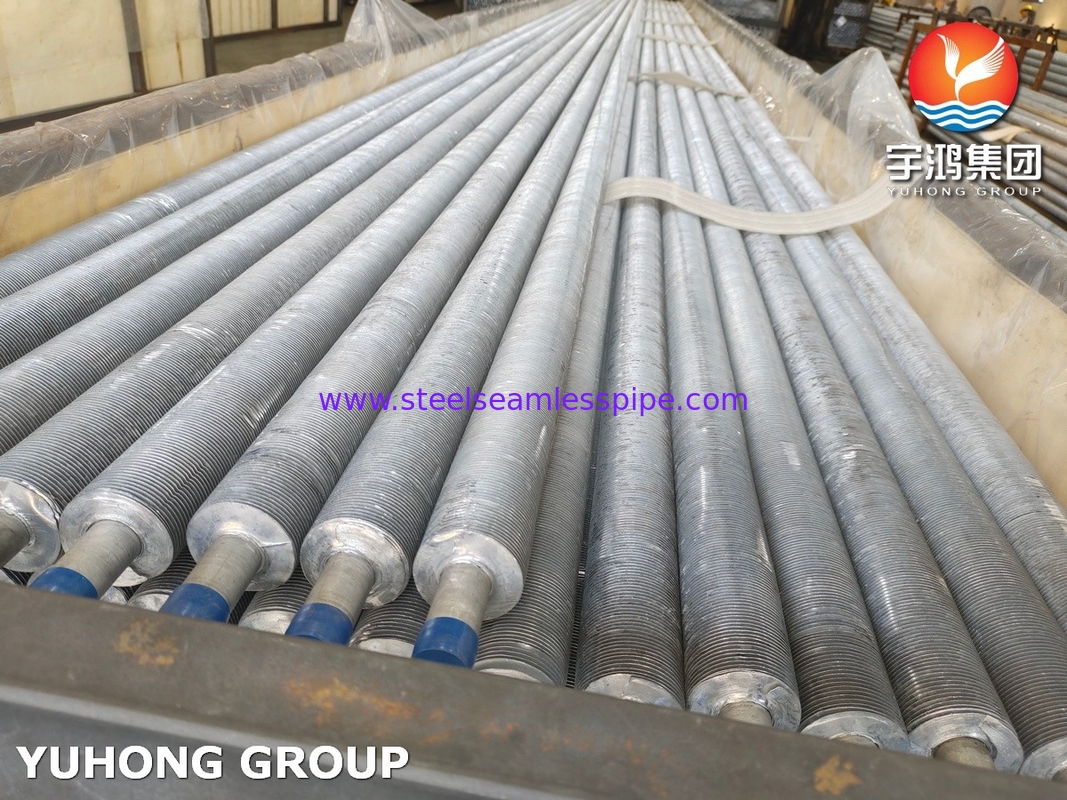

ASTM A269 TP304 Stainless Steel Extruded Finned Tube for Heat Exchanger

Extruded fin tubes Stainless steel extruded finned tubes are specialized thermal components designed to enhance heat transfer efficiency in a variety of industrial applications. They combine the advantages of fins—used to increase surface area for heat exchange—with the durability and corrosion resistance of stainless steel. This ensures longevity and performance even in harsh environments.

A269 TP304 Stainless Steel Tube Equivalent Grades

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
TP304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304

A269 TP304 Stainless Steel Tube Chemical Composition

Grades	Carbon	Chromium	Phosphorus	Sulfur	Manganese	Silicon	Nickel
TP304	0.08	18.0-20.0	0.045	0.03	2	1	8.0-11.0

A269 TP304 Stainless Steel Tube Mechanical Properties

Material	Temperure	Heat	Yield Strength	Tensile Strength	Elongation
Material	Min.º F(º C)	Treatment	Ksi (MPa)	Ksi (MPa)	Elongation
TP304	1900 (1040)	Solution	30(205)	75(515)	35

Specification

Bare tube Specification & Material	Stainless steel: ASTM A213, ASTM A312, ASTM A249, etc. 300 series: TP304/304L/304H;TP316/TP316L/316H,TP321/321H/TP347H, 400 Series: TP405,TP410,TP410S,TP420, TP430,TP444,TP446,TP409 Duplex steel:UNS 31803,S32205,S31500,,S31260,,S32304,S32750,S32760 DIN1.4512,1.4002,1.4016,1.4510,1.4006,1.4301,1.4306,1.4311, 1.4541,1.4550,1.4401,1.4404,1.4571,1.4429,1.4435,1.4436,1.4439,1.4948,1.4429, SUS304TB,SUS304HTB,SUS304LTB,SUS309TB,SUS309STB,SUS310TB,SUS310STB, SUS316TB,SUS316HTB,SUS316HTB Nickle alloy: UNS N04400,N06600,N06625,N08800,N08825,N08904,N10276 Titanium alloy: SB338 Gr.1 etc. Cooper alloy: C44300, SB111 C68700 , C70400, C70600, C71500,C71640 Carbon steel: ASME SA179, ASME SA192, SA106, SA214 Alloy steel: T2,T5,T9,T11,T12,T22,T91,T92
Fin material	AL1060, AL6063, AL1100, C12200 ,SS304,SS304L,SS316L,SS409 etc.
Type	Extruded fin tube L/LL//KL fin tube "G" Embedded fin tube Low fin tube High frequency welded fin tube Integral fin tube...
Process	Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Finish	Annealed & pickled, bright annealing, polished, antirust oil, the black painting
Ends	Beveled end, Plain end, Plastic Cap at Both end

Yuhong Group Fin Tube Specification
Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6-10	<17	0.2-0.4
	Low fin tube t-type fin tube	10-38	0.6-2	<1.6	~0.3
	Bamboo tube corrugated tube	16-51	8~30	<2.5	/
Wound	l/kl/ll type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~30	φ5-20
