ASTM A312 TP304H Stainless Steel HFW Finned Tube Spiral Serrated Fin Tube
HFW Helical finned Tubes are manufactured in both Solid finned type and Serrated type. 304H stainless steel tubes are a high-temperature variant of 304 stainless steel, known for its excellent corrosion resistance and mechanical properties. ASTM A312 TP304H stainless steel HFW finned tubes can enhance the heat performance, which are indeed designed to optimize heat transfer in various applications.
1. Solid Finned Tubes: Feature continuous solid fins wrapped in a helical pattern around the tube.
Advantages:
Efficient Heat Transfer: The solid fins provide a larger surface area for heat exchange.
Durability: Robust structure suitable for high-pressure applications.

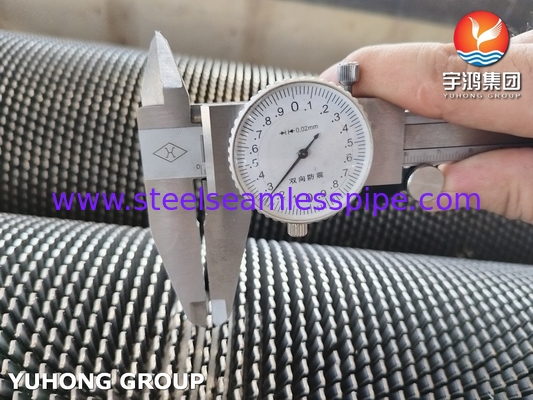

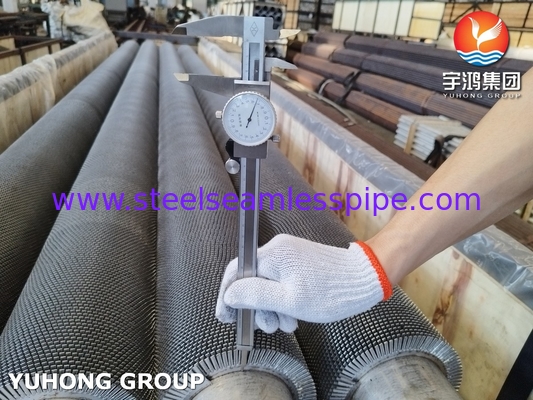

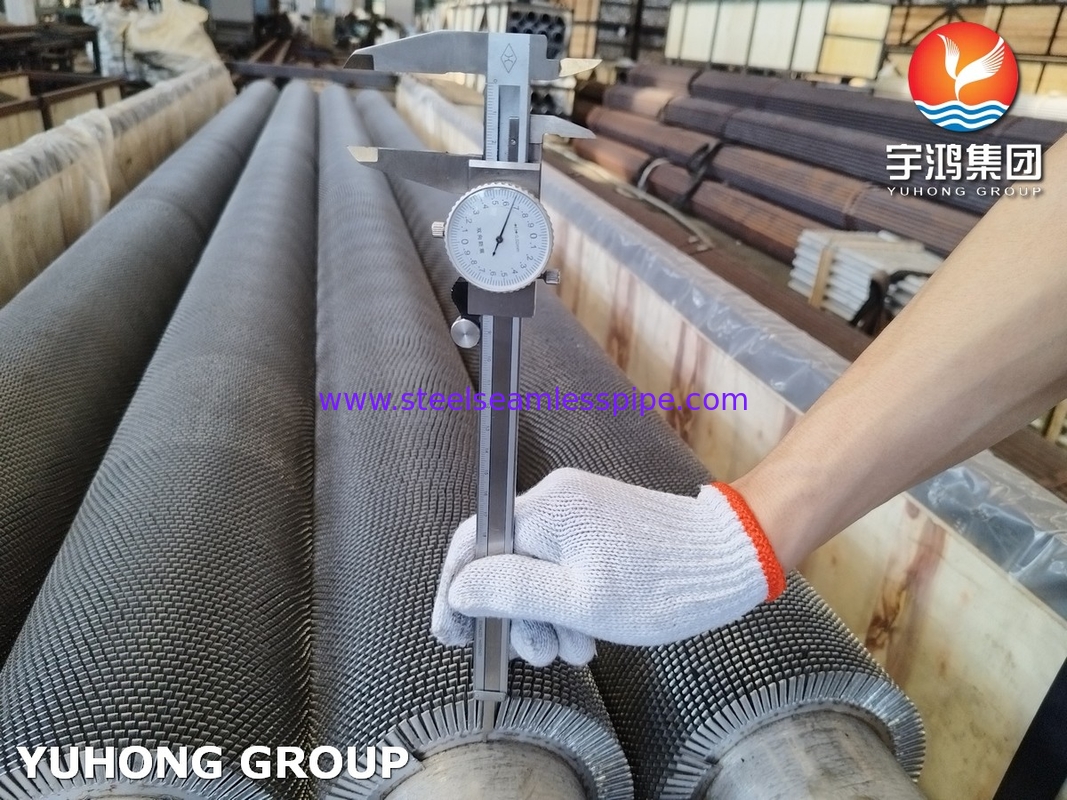

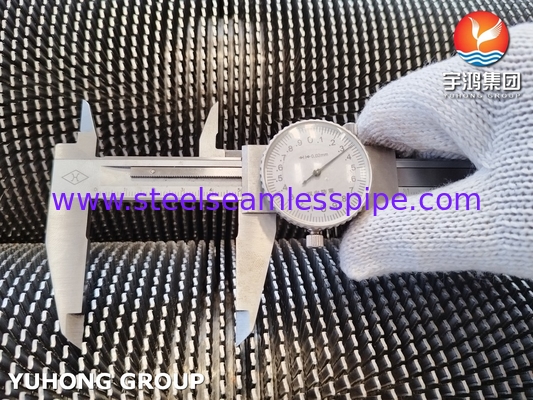

2. Serrated Finned Tubes: Have fins with serrated edges, which increase turbulence in the fluid flow.
Advantages:
Enhanced Thermal Performance: Increases turbulence, improving heat transfer efficiency.
Lower Pressure Drop: The serrations help in reducing flow resistance compared to solid fins.
Equivalent Grade of Stainless Steel 304H
EU
EN |
USA
- |
Japan
JIS |
France
AFNOR |
GOST |
Inter
ISO |
| X6CrNi18-10 (1.4948) |
304H
S30409
|
SUS304H |
Z6CN18-09 |
08KH18N10 |
X7CrNi18-9 |
European equivalent grade for Austenitic creep resisting steel 304H ( AISI, ASTM, UNS): X6CrNi18-10 (1.4948)
Chemical composition and properties of european equivalents (EN) for 304H (USA, AISI, ASTM, UNS): X6CrNi18-10 (1.4948)
Chemical Requirements of Stainless Steel 304H
| Grade |
UNS Designation |
Composition, % |
| Carbon |
Manganese |
Phosphorus, max |
Sulfur, max |
Silicon |
Chromium |
Nickel |
| 304H |
S30409 |
0.04-0.10 |
2.00 |
0.045 |
0.03 |
0.75 |
18-20 |
8-10.5 |
Fin Tube Specification
| PRODUCT |
TYPE |
NAME |
BARE TUBE MATERIAL |
FIN MATERIAL |
|
Heat Exchanger
Finned
Tube
|
EMBEDDED |
G-TYPE FIN TUBE |
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
ALUMINUM |
| EXTRUDED |
SINGLE METAL GOMBINED METAL |
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
COPPER, ALUMINUM |
|
LOW FIN TUBE
T-TYPE FIN TUBE
|
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
/ |
|
BAMBOO TUBE
CORRUGATED TUBE
|
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
/ |
| WOUND |
L/KL/LL TYPE FIN TUBE |
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
COPPER,ALUMINUM |
| STRING |
STRING FIN TUBE |
ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL |
ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL |
| U-TYPE |
U-TYPE TUBE |
CARBON STEEL, COPPER, STAINLESS STEEL |
/ |
| WELDING |
HF WELDING FIN TUBE |
CARBON STEEL, STAINLESS STEEL, ALLOY |
CARBON STEEL, STAINLESS STEEL, ALLOY |
| U-TYPE |
H/HH TYPE FIN TUBE |
CARBON STEEL, STAINLESS STEEL, ALLOY |
CARBON STEEL, STAINLESS STEEL, ALLOY |
| WELDING |
STUDDED FIN TUBE |
CARBON STEEL, STAINLESS STEEL, ALLOY |
CARBON STEEL, STAINLESS STEEL, ALLOY |
Material Grade
| American Standard |
Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| GOST Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Advantages of Helical Finned Tubes
High Thermal Efficiency: The helical fin design enhances the heat transfer coefficient, making them ideal for demanding thermal systems.
Improved Fluid Dynamics: The helical arrangement promotes better flow patterns, reducing dead zones and improving overall efficiency.
Compact Design: They provide a high heat exchange capability in a smaller footprint, which is valuable in space-constrained applications.
Versatility: Suitable for a variety of fluids, including gases and liquids, across different industries.
Applications
1. HVAC & Boilers
2. Power plant
3. Heat recovery steam generator
4. Petrochemical industry
5. Marine applications
6. Refrigeration applications
7. Economizer
8. Oil and Gas Coolers
9. Plumbing and Air Conditioning
10. Condenser and Evaporator
11. Shell and Tube Heat Exchanger
12. Various other heat exchanger applications
