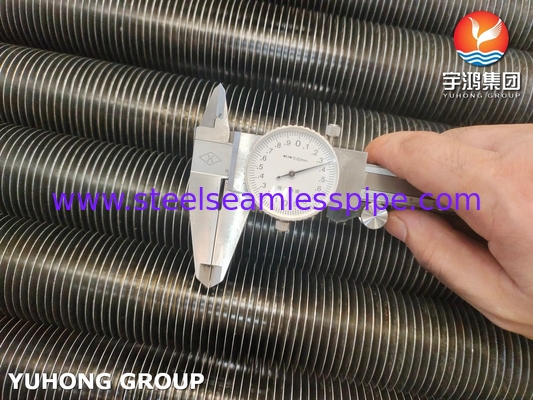

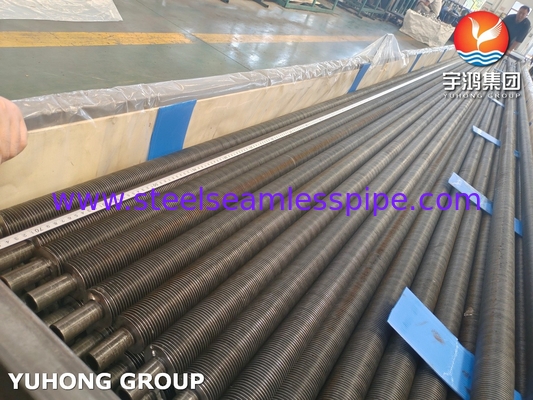

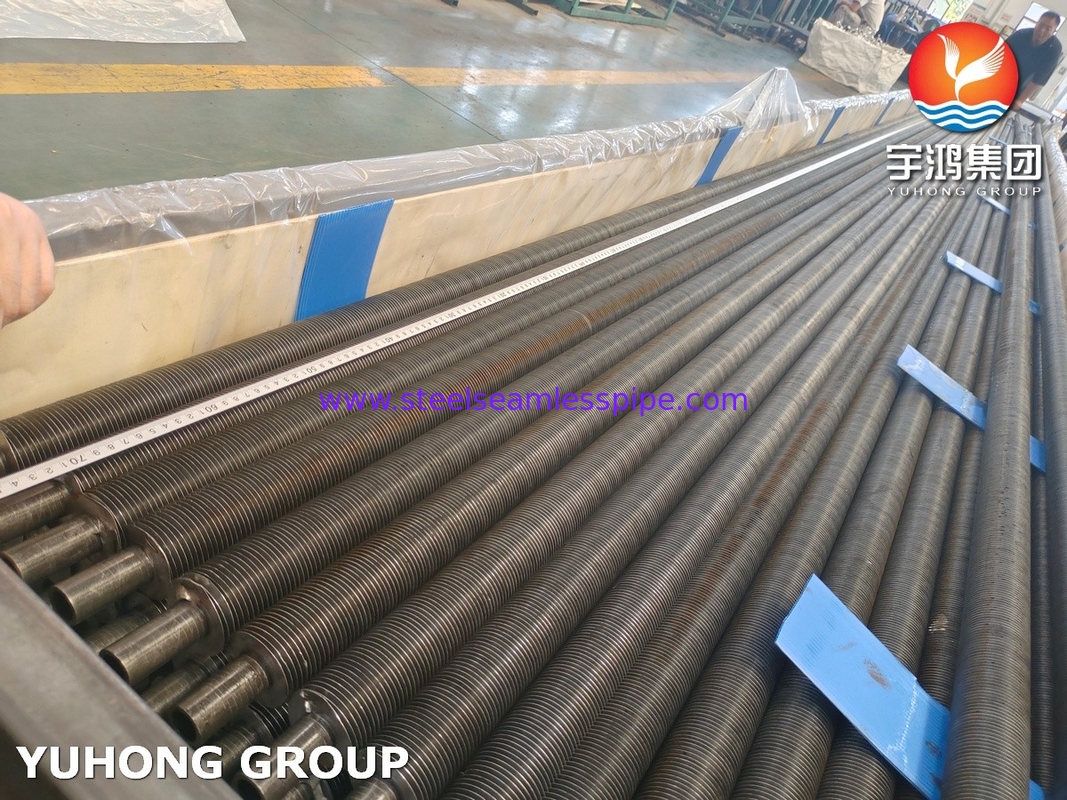

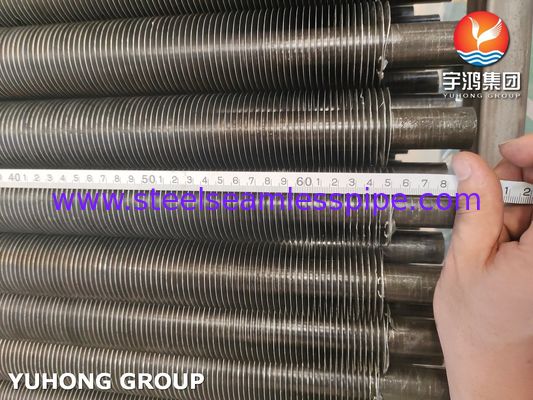

L Type Finned Pipe A179 Aluminium 1060 1100 For Cooling Tower

L Type Finned Pipe A179 Aluminium 1060 1100 G Type KL Type For Cooling Tower

Introduction to L-type Fin Tube with A179 Base Tube and Aluminium Fin

The L-type fin tube is a commonly used heat exchanger component designed to enhance heat transfer efficiency. The base tube is typically made from A179 carbon steel, which provides excellent heat conductivity and durability. The fins are made of aluminium, a material known for its light weight, corrosion resistance, and good heat transfer properties. The L-type fin tube gets its name from the shape of the fin, which is wrapped around the base tube in an "L" configuration, ensuring a tight fit and enhancing surface contact for optimal heat transfer.

Advantages of L-Type Fin Tube

Efficient Heat Transfer: The wrapping process of the L-type fin ensures strong contact between the base tube and the fin, providing an effective pathway for heat transfer. This makes the L-type fin tube highly efficient in applications like air-cooled heat exchangers and industrial boilers.

Cost-Effective: Compared to some other types of finned tubes, the L-type is generally more economical due to the simple wrapping process, which reduces manufacturing costs without sacrificing performance.

Corrosion Resistance: The aluminium fins provide excellent resistance to corrosion, particularly in environments with exposure to moisture or chemical agents. This makes the L-type fin tube suitable for outdoor or marine applications.

Lightweight: Aluminium fins make the overall structure lighter compared to other materials like copper, allowing for easier installation and handling, as well as reducing the overall load in the system.

Flexibility in Applications: Due to the versatility of the A179 base tube, the L-type fin tube can be used in a variety of heat transfer applications, including industrial, chemical, and petrochemical industries.

Differences between L-Type and G-Type Fin Tubes

Fin Attachment Method:

L-type fin tube: The aluminium fin is mechanically wrapped around the A179 base tube in an "L" configuration, which provides a tight fit without additional welding or brazing.

G-type fin tube: The fins are embedded into the base tube using a groove that is cut into the tube's surface. This ensures a secure and permanent attachment but involves a more complex manufacturing process.

Thermal Conductivity:

L-type: The thermal contact between the fin and the tube is maintained by mechanical pressure, which is sufficient for many applications but may not be as conductive as the G-type under extreme heat conditions.
G-type: The groove mechanism creates a more solid bond between the fin and the base tube, resulting in slightly better heat transfer efficiency, especially under higher temperatures.

Manufacturing Complexity:

L-type: Easier and faster to manufacture due to its simple mechanical wrapping method. This makes it more cost-effective for large-scale production.

G-type: Requires precision in cutting grooves into the base tube, which increases both production time and cost.

Durability:

L-type: Adequately durable for most applications but may have reduced long-term reliability in high-stress environments due to the mechanical fit.
G-type: Offers superior durability in harsh environments or applications involving high temperatures or vibrations, thanks to the more secure fin attachment.
