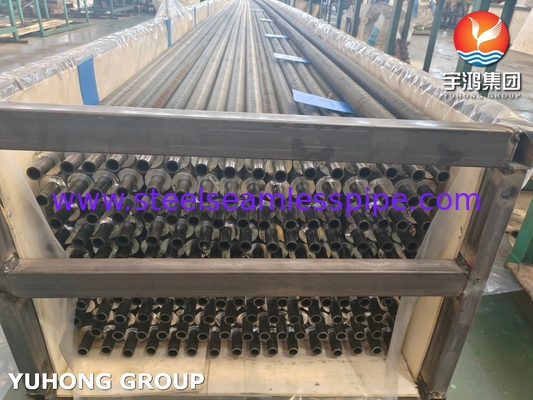

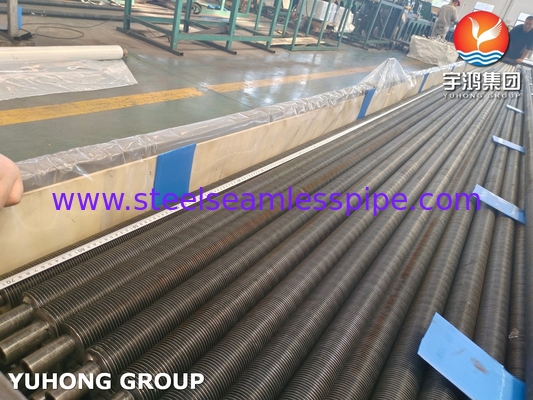

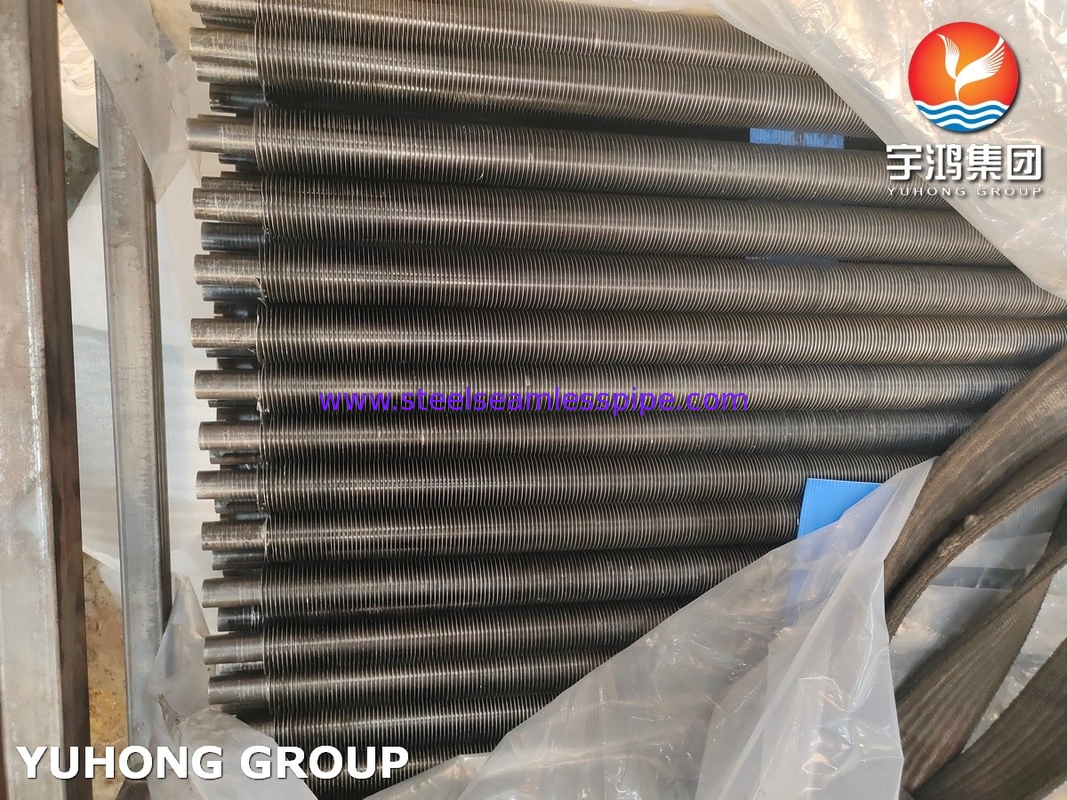

ASTM A179 Carbon Steel Seamless Tube Aluminiun Fin G Type Fin Tube For HRSG System

ASTM A179 Carbon Steel Seamless Tube with Aluminum G-Type Fins for HRSG System

ASTM A179 carbon steel seamless tubes with aluminum G-type fins are widely used in Heat Recovery Steam Generator (HRSG) systems, which are crucial for improving the thermal efficiency of power plants by recovering waste heat from exhaust gases. The combination of carbon steel base tubes and aluminum fins ensures a good balance of heat transfer, durability, and corrosion resistance in high-temperature environments.

Here’s a detailed breakdown of the materials, features, and applications:

1. Material Specifications

Base Tube Material:

• Standard: ASTM A179
• Type: Seamless Carbon Steel Tube
• Applications: Primarily used in heat exchangers, condensers, and other systems requiring high-pressure and high-temperature resistance.

Fin Material:

• Material: Aluminum
• Type: G-Type Fins
  • G-Type: A specific fin design that increases the surface area of the tube for efficient heat transfer while maintaining durability and reducing fouling.

2. Chemical Composition of Base Tube (ASTM A179 Carbon Steel)

3. Mechanical Properties of Base Tube (ASTM A179 Carbon Steel)

4. Aluminum G-Type Fin Material Properties

• Material: Aluminum
• Purpose: Provides excellent thermal conductivity and resistance to corrosion.
• Properties:
  • Lightweight: Helps reduce the overall weight of the heat exchanger system.
  • High Thermal Conductivity: Ensures efficient heat exchange between the fluid in the tube and the air around the finned surface.
  • Corrosion Resistance: Aluminum resists corrosion in most environments, particularly in humid or marine conditions.

5. Fin Design: G-Type Fins

• Design: The G-type fin is characterized by its efficient heat exchange surface area and durability. These fins are designed to increase the surface area of the tube, thereby enhancing the heat transfer rate.
  • Shape: The G-type fins have a wave-like design that helps in reducing air resistance and preventing fouling.
  • Benefits: Improves heat transfer efficiency by increasing the turbulence of air around the tube, which enhances convective heat transfer.

6. Applications in HRSG Systems

• Heat Recovery Steam Generators (HRSG):
  • Purpose: HRSG systems use these finned tubes to capture waste heat from gas turbine exhaust and transfer it to the feedwater, which is then converted into steam to drive steam turbines.
  • Energy Efficiency: By recovering waste heat, the system improves the overall thermal efficiency of power plants.
  • Boiler Economizers: Used to preheat the feedwater, reducing fuel consumption and improving operational efficiency.
• Heat Exchangers and Condensers:
  • Finned tubes like the G-type design are common in heat exchangers, where the primary goal is to transfer heat from a fluid (such as steam, water, or oil) to a second medium (such as air or cooling fluid).

7. Advantages of ASTM A179 Carbon Steel Seamless Tubes with Aluminum G-Type Fins

• High Thermal Efficiency: The aluminum G-type fins significantly increase the surface area of the tube, allowing for better heat exchange and improving overall thermal efficiency in the HRSG system.
• Corrosion Resistance: Aluminum fins provide resistance to corrosion, ensuring longevity and reliable performance in harsh environments, such as those found in power plants and industrial heating systems.
• Lightweight Design: The aluminum fins reduce the weight of the heat exchanger, which can help reduce material costs and make the system easier to install and maintain.
• Durability: The seamless ASTM A179 carbon steel tube provides excellent strength and resistance to high pressure and temperature, ensuring a long operational life.
• Cost-Effective: The combination of carbon steel and aluminum provides an economical solution without sacrificing performance.
