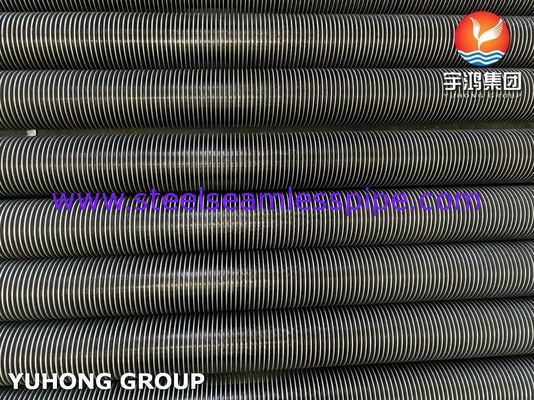

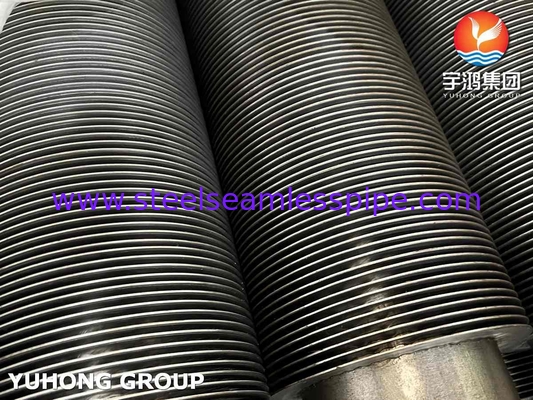

High Frequency Welding ASTM A312 TP316L Stainless Steel Fin Pipe For Furnace

High-Frequency Welding ASTM A312 TP316L Stainless Steel Fin Pipe for Furnace Applications

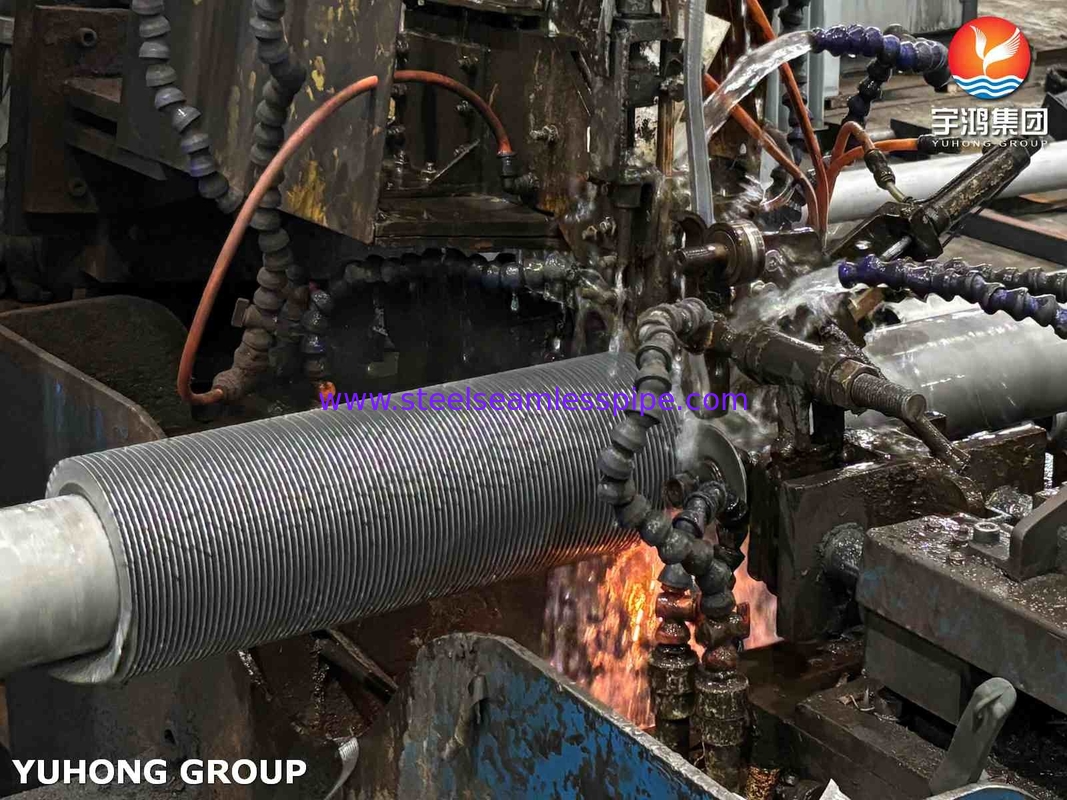

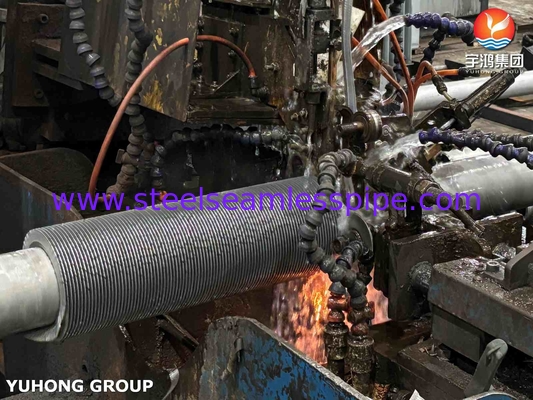

ASTM A312 TP316L stainless steel finned pipes are widely used in furnaces and heat-intensive environments where superior corrosion resistance and thermal conductivity are required. The high-frequency welding process ensures a strong bond between the fins and the base tube, optimizing heat transfer efficiency and durability under harsh conditions.

1. Material Specifications

Base Tube Material:

• Standard: ASTM A312
• Grade: TP316L (Low-Carbon Stainless Steel)
• Type: Austenitic stainless steel, seamless or welded.
• Applications: Suitable for high-temperature and corrosive environments.

Fin Material:

• Material: Stainless Steel (can match TP316L or alternative grades for specific applications).
• Type: High-frequency welded fins.

2. Chemical Composition of Base Tube (ASTM A312 TP316L)

3. Mechanical Properties of Base Tube (ASTM A312 TP316L)

4. Key Features of High-Frequency Welded Fins

• Strong Bonding: The high-frequency welding process creates a robust bond between the fins and the base tube, ensuring durability under high thermal stresses.
• Enhanced Heat Transfer: Fins increase the surface area for heat exchange, improving efficiency in furnaces.
• Corrosion Resistance: TP316L stainless steel provides excellent resistance to oxidation, pitting, and crevice corrosion in high-temperature and acidic environments.
• Thermal Efficiency: Low carbon content in TP316L reduces carbide precipitation, maintaining superior thermal conductivity.

5. Applications

• Furnaces: Used in radiant and convection sections to enhance heat recovery and improve efficiency.
• Heat Exchangers: Widely applied in chemical plants, refineries, and power plants.
• Boilers: Ideal for high-temperature boiler applications requiring efficient heat transfer and durability.
• Petrochemical Industry: Suitable for harsh environments with corrosive media.

6. Advantages

1. Durability: Withstands high temperatures and corrosive conditions for long operational life.
2. Energy Efficiency: Optimized heat transfer reduces fuel consumption and operational costs.
3. Low Maintenance: High corrosion resistance minimizes the need for frequent repairs or replacements.
4. Versatility: Suitable for a wide range of industrial applications.
