ASME SA106 Gr B Studded Tube For High Efficiency Heat Transfer In Coal Fired Power Plants

ASME SA106 Gr.B Studded Tube​

What is a Studded Tube?

Studded tubes are a type of metal tubes. These tubes have studs welded onto the metal tube. These studs are arranged in a specific formation throughout the length of the tube. They are often used in boilers and refineries. As they increase the surface area for higher heat transfer they are used for reheating.

ASME SA106 Gr.B pin fin tube is a cost-effective choice for medium temperature and low corrosion waste heat recovery system, especially for coal-fired power plants and petrochemical plants. Its core value lies in high-efficiency heat transfer performance at low cost, but the coating protection ability needs to be carefully evaluated in high Cl⁻/H₂S environments. It is recommended to combine fluid simulation and coating technology in the design phase, and to clarify non-destructive testing and coating acceptance standards during procurement to ensure service reliability. For extreme corrosion or high temperature scenarios, alloy steel or stainless steel finned tubes are recommended as alternatives.

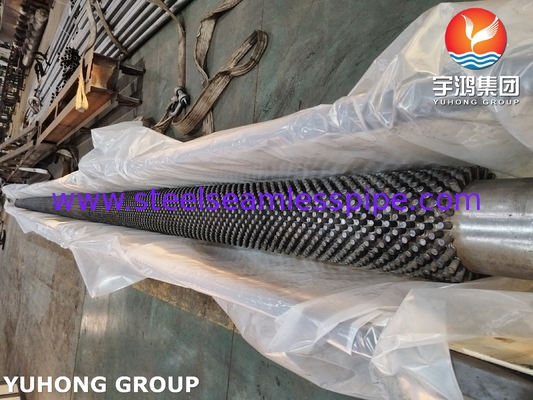

Studded Tube




Studded pipe size and material


Chemical Composition of ASME SA106 Gr.B :

Mechanical Properties of ASME SA106 Gr.B :




Application

Power industry:
Coal-fired boiler economizer (Economizer), air preheater (APH)
Waste heat boiler (HRSG) flue heat exchange tube

Petrochemical and chemical industry:
Fluidic cracking unit (FCCU) waste heat recovery system
Sulfur recovery unit (SRU) process gas cooler

Environmental protection engineering:
Waste heat power generation system of waste incineration flue gas (resistant to HCl/dioxin corrosion requires coating)
Coking plant dry quenching (CDQ) waste heat recovery tube bundle
