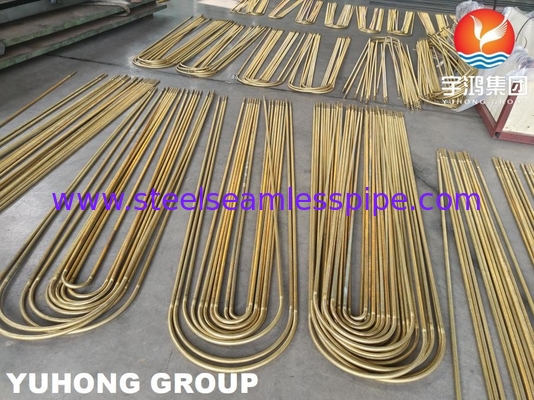

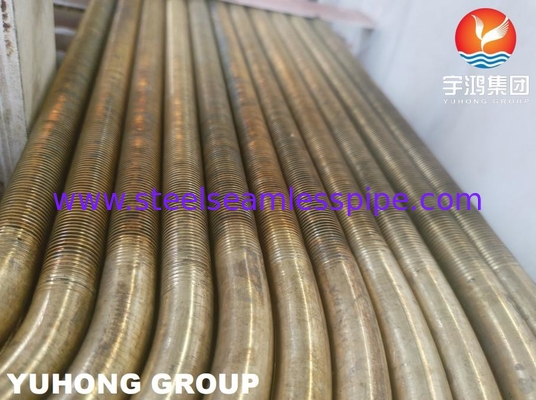

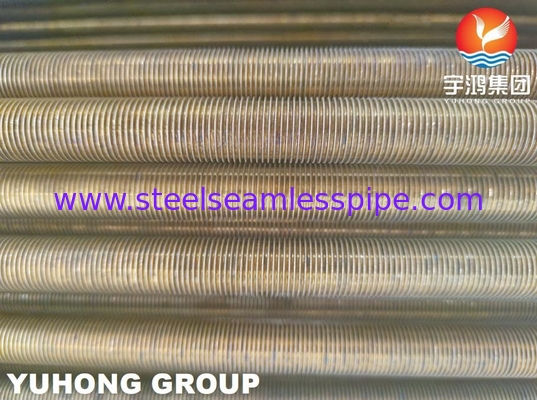

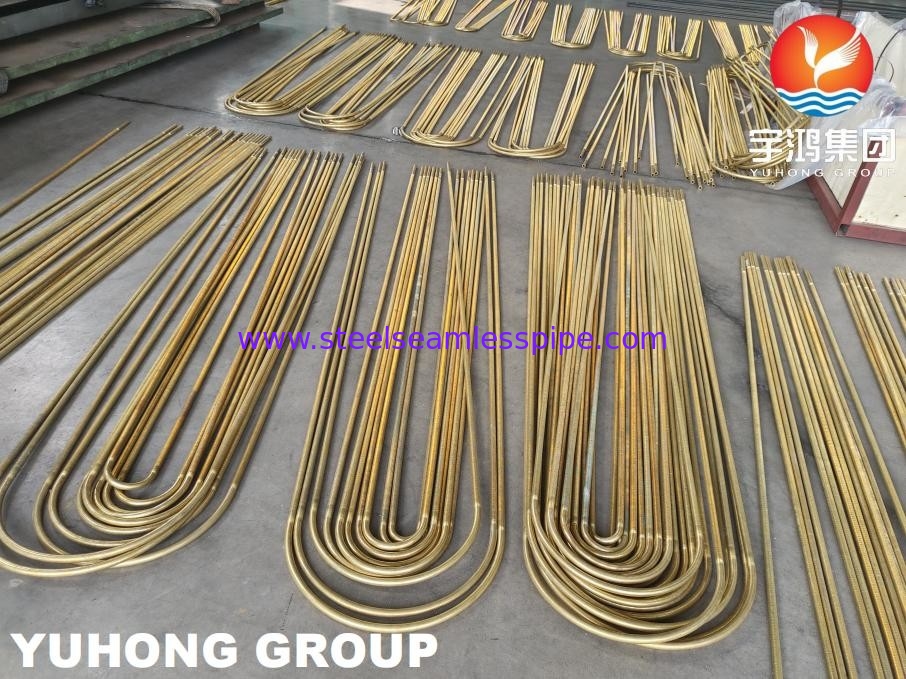

B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16

B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16

  • B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16
  • B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16
  • B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16
  • B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16
B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16
Product Details:
Place of Origin: China
Brand Name: Low Fin Tube
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: B359 C44300
Payment & Shipping Terms:
Minimum Order Quantity: 1000KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Delivery Time: 20-80
Payment Terms: L/C, T/T
Supply Ability: 800 Tons/ month
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM B359 Type: Low Fin Tube
Base Tube Material: C44300 C44500 Tube Thickness: 1.65MM
Tube OD: 15.875MM Fin Height: 1.2MM
Fin Thickness: 0.3MM
Highlight:

Heat Exchangers Fin Tube U Bend

,

ASTM B154-16 Fin Tube U Bend

,

C44500 Fin Tube U Bend

B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend for Heat Exchangers



B359 describes seamless copper and copper alloy tubing on which the external or internal surface, or both, has been modified by a cold-forming process to produce an integral enhanced surface for improved heat transfer. The tubes are used in surface condensers, evapora-
tors, and heat exchangers and are normally made from the following copper or copper alloys:

  1. C10100
  2. C10200
  3. C10300
  4. C10800
  5. C12000
  6. CI 2200
  7. C14200
  8. C19200
  9. C23000
  10. C44300
  11. C44400
  12. C44550
  13. C60800
  14. C68700
  15. C70400
  16. C70600
  17. C71000
  18. C71500
  19. C72200





B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend Chemical Composition​​

Element Content (%) (ASTM B139 Requirements)
Copper (Cu) Balance
Tin (Sn) 9.0 – 11.0
Phosphorus (P) 0.03 – 0.35
Lead (Pb) ≤ 0.05 (max)
Iron (Fe) ≤ 0.10 (max)
Zinc (Zn) ≤ 0.30 (max)
Other Impurities ≤ 0.50 (total)

B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend Mechanical Properties​​

Property Condition Value (Typical) Test Standard
Tensile Strength Annealed 325 – 380 MPa (47 – 55 ksi) ASTM E8/E8M
  Cold Worked 485 – 620 MPa (70 – 90 ksi)
Yield Strength (0.2%) Annealed 125 – 170 MPa (18 – 25 ksi) ASTM E8/E8M
  Cold Worked 415 – 550 MPa (60 – 80 ksi)
Elongation (%) Annealed 50 – 65% ASTM E8/E8M
  Cold Worked 5 – 15%
Hardness Annealed 60 – 85 HV ASTM E384
  Cold Worked 150 – 190 HV
Electrical Conductivity - 13 – 15% IACS ASTM B193



B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend Drawing



B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16 0



B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend TEST

  • base tube: eddy current, hydraulic test, Mercurous Nitrate Test-B154, flaring, flattening etc..
  • Final product: hydraulic test 3Mpa/5s



B359 C44300 C44500 Copper Alloy Low Fin Tube U Bend For Heat Exchangers ASTM B154-16 1

Tag:

finned copper tube,

heat exchanger fin tube,

extruded finned tube
