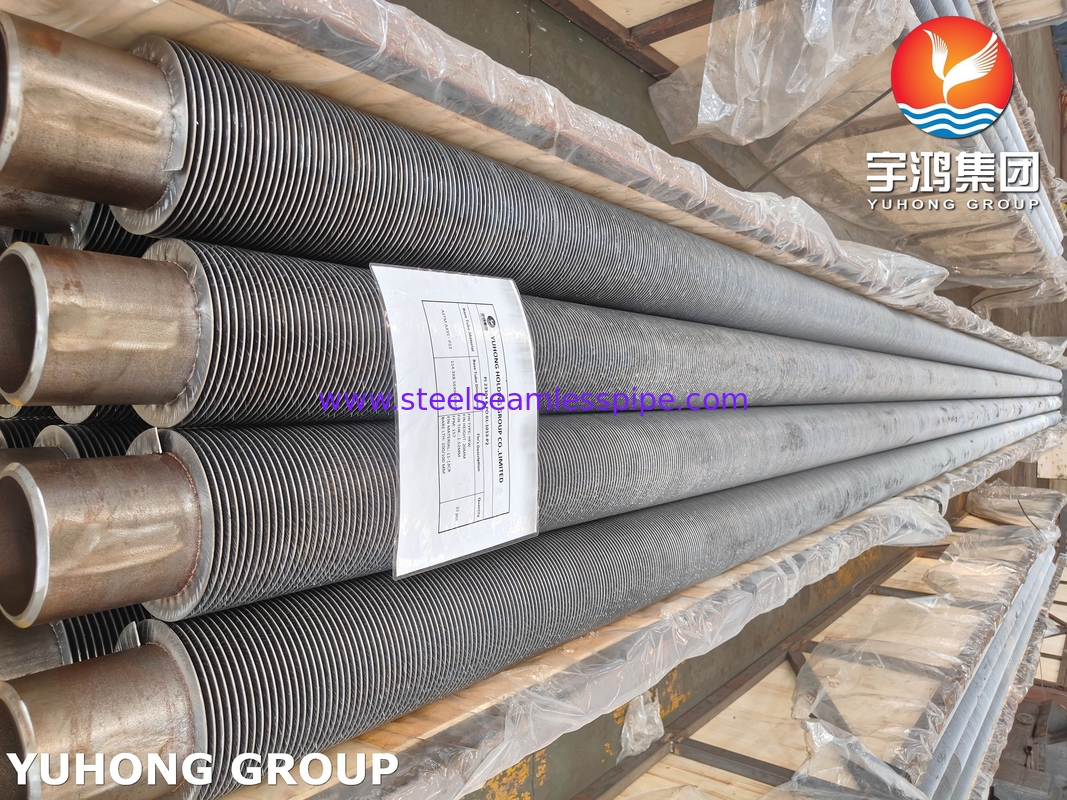

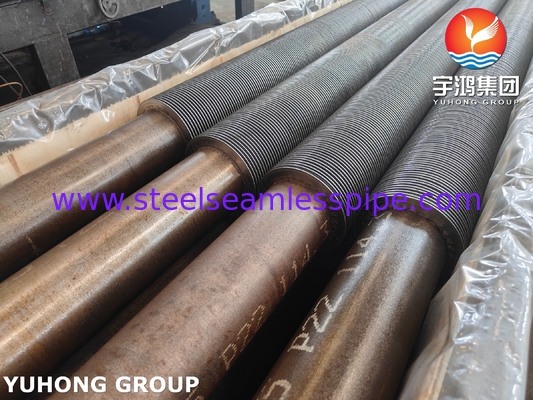

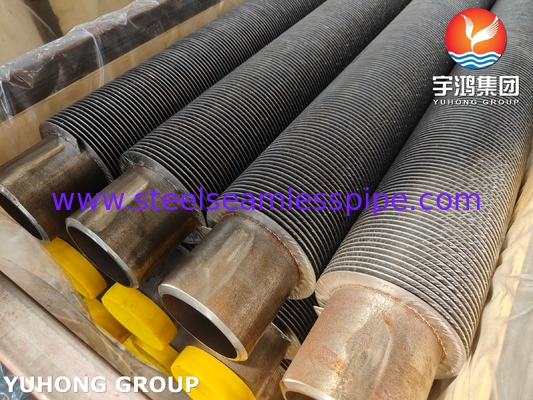

SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants

SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants

  • SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants
  • SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants
  • SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants
SA210 GR A1 Aluminium 1060 Embedded G Type Fin Tube For Power Plants
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: SA210 GR.A1 Embedded G Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: Depending on QTY
Payment Terms: L/C AT SIGHT, T/T
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Standard: SA210 GR.A1 Base Tube Type: Embedded G Type
Application: Heater Parts, Refrigeration Parts, Air Cooler, Fluid Cooling Base Tube Material: Alloy Steel / Stainless Steel / Carbon Steel
Fin Material: Aluminium 1060 Or Other Grades Packing: Iron Steel Frame Wooden Case
Highlight:

Aluminium 1060 Fin Tube

,

Embedded SA210 Fin Tube

,

Embedded G Type Fin Tube

SA210 GR.A1 Aluminium 1060 Embedded G Type Fin Tube , for Power Plants





The SA210 GR.A1 Aluminium 1060 Embedded G-Type Fin Tube is a high-performance heat transfer product widely used in various industries, such as power plants, chemical processing, petrochemical, and HVAC systems, for heat exchange applications. This type of fin tube is designed to provide superior thermal efficiency, durability, and operational reliability.





ASTM A210 Grade C Composition

Grade

C(Max)

Mn

Si(Min)

P(Max)

S(Max)

A1

0.27

Max 0.93

0.10

0.035

0.035





ASME SA210 Mechanical Properties

Grade

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

A1

≥415

≥255

≥30





Key Features:

  • Base Tube Material (SA210 GR.A1):

    • Made from SA210 GR.A1 carbon steel, known for its excellent mechanical strength, high-temperature resistance, and pressure-bearing capabilities. It is ideal for use in demanding heat transfer applications.
  • Fin Material (Aluminium 1060):

    • The fins are manufactured using Aluminium 1060, which has high thermal conductivity (approximately 234 W/m·K at 20°C) for efficient heat transfer. Aluminium 1060 is lightweight, corrosion-resistant, and suitable for harsh environments.
  • Embedded G-Type Fins:

    • The "G-Type" fin design involves embedding aluminium fins into precisely machined grooves on the tube surface. The fins are then mechanically locked into place, ensuring excellent thermal contact and preventing fin loosening during operation.
    • The G-fin design delivers enhanced heat transfer performance while maintaining structural integrity under high-temperature and high-pressure conditions.





Advantages:

  • Improved Heat Transfer Efficiency: The strong bond between fins and the tube ensures optimal thermal conductivity.
  • Corrosion Resistance: Aluminium fins provide excellent resistance against oxidation and corrosion, extending the life of the fin tube.
  • High Durability: SA210 GR.A1 base tubes offer superior mechanical strength and operational reliability even under extreme conditions.
  • Cost-Effectiveness: The combination of durable materials and efficient heat transfer reduces maintenance and operational costs.





Application:

  • Boilers and Economizers in power plants.
  • Heat Exchangers in petrochemical and chemical industries.
  • Air Conditioners and Refrigeration Systems.
  • Dryers and other industrial heat transfer equipment.
