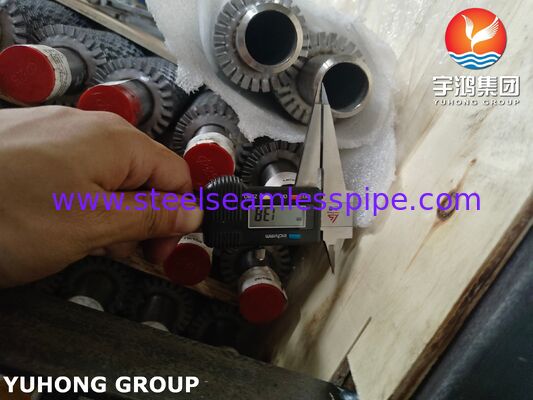

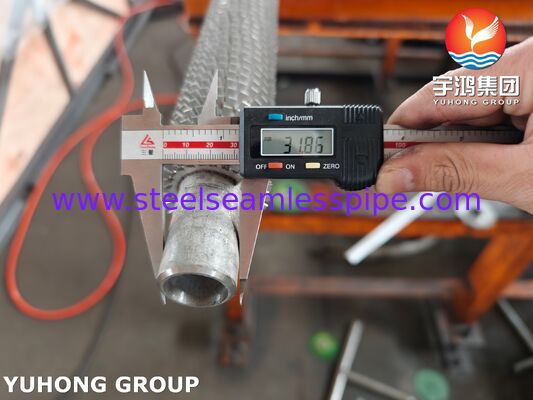

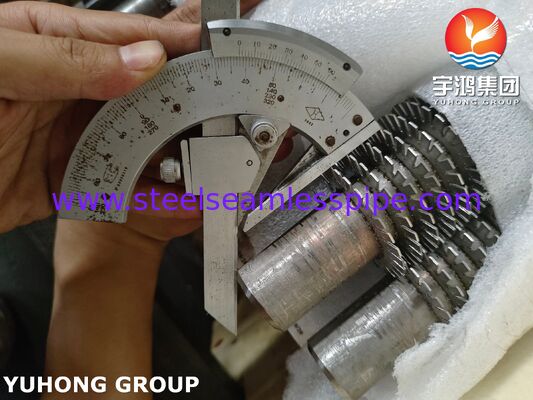

High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin

High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin

  • High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin
  • High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin
  • High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin
  • High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin
High Frequency Welded Serrated Finned Tube TP304H Base / SS304 Fin
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: Serrated Finned Tube
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: IRON FRAME WOODEN CASE
Delivery Time: Depends on quantity
Payment Terms: L/C,T/T
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (321)
Stainless Steel Seamless Tube (308)
Duplex Stainless Steel Pipe (134)
Duplex Stainless Steel Tube (36)
Needle Tube (146)
Fin Tube (685)
Heat Exchanger (22)
Heat Exchanger Tube (452)
Heat Exchanger Tube Bundle (46)
Heat Exchanger Tubesheet (122)
Heat Exchanger Baffle (39)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (123)
Nickel Alloy Pipe (270)
Nickel Alloy Tube (93)
Copper Alloy Tube (245)
Alloy Steel Tube (206)
Titanium Tube (17)
Bright Annealed Tube (164)
Boiler Tube (151)
Steel Fitting (838)
Steel Flange (627)
Others (404)
Cladding Parts (8)
Detailed Product Description
Fin Type: HFW Serrated Base Tube Material: ASTM TP304H
Fin Material: SS304 / UNS S30400 Welding Technology: High-Frequency Welding
Fin Density (Fins/inch): 5-15 (Customizable) Application Industry: Boilers, Waste Heat Recovery
Highlight:

Serrated Finned Tube

,

High Frequency Welded Finned Tube

,

SS304 Finned Tube



 HIGH-FREQUENCY WELDED SERRATED FINS: THE ULTIMATE HEAT TRANSFER ACCELERATOR



Base Tube: TP304H ASTM A213 | Fins: SS304 ASTM A167



Superior Material Synergy



Engineered for Extreme Thermal Efficiency & Corrosion Resistance


Our bimetallic finned tubes leverage the synergistic properties of:



  • Base Tube: TP304H Austenitic Stainless Steel (High-Temperature Grade)



  • Fins: SS304 Stainless Steel with Serrated Edge Design



Chemical Composition (ASTM Verified)





Component TP304H Base Tube (%) SS304 Fins (%)
Carbon 0.04-0.10 ≤0.08
Chromium 18.0-20.0 18.0-20.0
Nickel 8.0-11.0 8.0-11.0
Manganese ≤2.00 ≤2.00
Silicon ≤1.00 ≤1.00
Phosphorus ≤0.045 ≤0.045
Sulfur ≤0.030 ≤0.030



Precision Manufacturing Process



High-Frequency Resistance Welding (HFRW) Technology



  1. Surface Preparation: Vapor degreasing + Abrasive blasting (Sa 2.5)
  2.
  3. Fin Winding: CNC-controlled tension @ 300-500 N/mm²
  4.
  5. Welding: 400 kHz HF current creates metallurgical bond
  6.
  7. Serration: Laser-cut discontinuous edges (Depth: 2-3mm, Pitch: 5-8mm)
  8.
  9. Annealing: 1050°C solution treatment + rapid quenching
  10.

Bond Strength: >50 MPa (Per ASME Section IX)


Fin Adhesion: 100% visual inspection & shear tested





Dimensional Tolerance Excellence



ASME B36.19 Compliant



Parameter Tolerance Range
Base Tube OD ±0.10 mm (6.35-38.1 mm)
Fin Height ±0.20 mm (12-25 mm)
Fins per Inch (FPI) ±1 fin (4-12 FPI)
Fin Thickness ±0.05 mm (0.3-1.2 mm)
Straightness ≤1.5 mm/m length



Critical Application Domains



Where Our Tubes Excel



Industry Equipment Temp Range
Power Generation HRSG Economizers/Superheaters 400-650°C
Petrochemical Cracked Gas Heat Exchangers 300-550°C
Waste Incineration Flue Gas Condensers 200-450°C
Marine Exhaust Gas Boilers 250-500°C
HVAC Industrial Dehumidifiers -40 to 120°C



Competitive Advantages



Why Global Leaders Choose Us



  • Thermal Performance: 45-65% higher HTC vs. smooth tubes (Per TEMA standards)
  •
  • Fouling Resistance: Serration disrupts boundary layer - 30% longer run cycles
  •
  • Corrosion Safety: Passivated surface (ASTM A380 compliant)
  •
  • Pressure Rating: 35 MPa @ 600°C (TP304H proof strength)
  •
  • Certifications: ISO 9001, PED 2014/68/EU, ASME Section VIII Div.1
