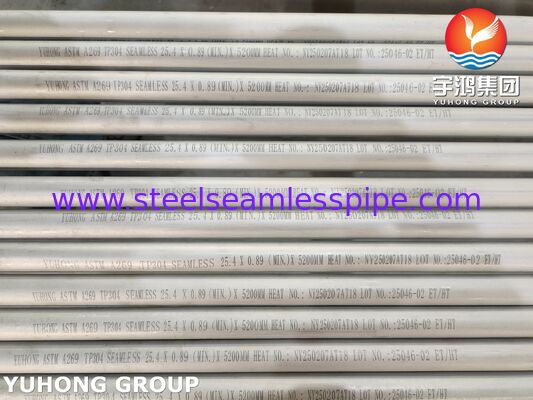

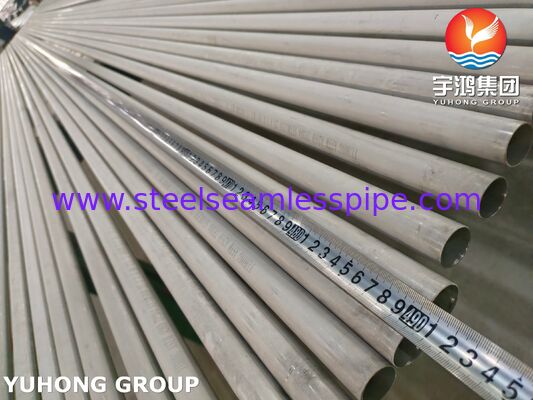

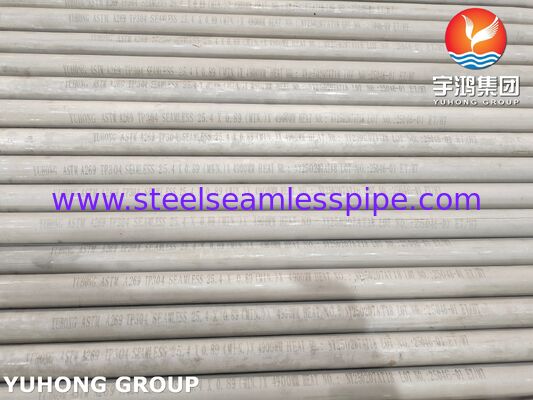

ASTM A269 TP304 Stainless Steel Seamless / Welded Tube UNS S30400

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP304

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	Depends on quantity
Payment Terms:	T/T,L/C
Supply Ability:	1000 tons/month

Contact Now

All Products

Stainless Steel Seamless Pipe (321)

Stainless Steel Seamless Tube (308)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (146)

Fin Tube (685)

Heat Exchanger (22)

Heat Exchanger Tube (452)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (123)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (93)

Copper Alloy Tube (245)

Alloy Steel Tube (206)

Titanium Tube (17)

Bright Annealed Tube (164)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (627)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASTM A269 / UNS S30400	Material:	TP304 Stainless Steel
Type:	Seamless / Welded	Surface:	Bright Annealed
OD:	6mm - 219mm	WT:	0.8mm - 3.0mm
Length:	6m Or Cut-to-Length	Ends:	Plain End
Highlight:	TP304 Stainless Steel Tube , A269 TP304 Stainless Steel Tube , ASTM A269 Stainless Steel Tube

TP304 stainless steel tube is an austenitic product manufactured in strict compliance with ASTM A269, designated as UNS S30400. This tubing is suitable for general corrosion-resisting and high/low temperature service scenarios, and is widely utilized in global industrial applications.

Core Chemical Composition

Carbon (C)	Chromium (Cr)	Nickel (Ni)	Manganese (Mn)	Silicon (Si)	Phosphorus (P)	Sulfur (S)
≤0.08%	18.00%-20.00%	8.00%-11.00%	≤2.00%	≤0.75%	≤0.045%	≤0.030%

Dimensional Specifications

Outside Diameter (OD)	Wall Thickness (WT)	Standard Length	OD Precision	WT Tolerance	Applicable Type	Cutting End Face	Customization Range
1/4 in (6.4mm) - 5 in (127mm) (Standard, per ASTM A269), Customizable up to 24.8 in (630mm)	0.020 in (0.51mm) - 0.5 in (12.7mm) (Standard, per ASTM A269), Customizable up to 0.79 in (20mm)	1m-12m (Custom Length on Demand)	±0.05mm	±0.1mm	Seamless/Welded Tube	Smooth, Burr-Free, Uniform Bevel	Full-Size Customization on Demand

Testing Items

Mandatory Chemical Test	Mandatory Mechanical Test	Mandatory Pressure Test	Mandatory Appearance Test	Optional Corrosion Test	Optional Non-Destructive Test	Testing Equipment
Direct Reading Spectrometer Test	Tensile Strength (≥515MPa), Yield Strength (≥205MPa), Elongation (≥40%), Flaring/Flange Test (per ASTM A269)	Hydrostatic/Pneumatic Test, Non-Destructive Electrical Test	Full-Size Precision, Surface Defect Inspection	Salt Spray Test, Intergranular Corrosion Test (Optional, Negotiable per ASTM A269 Supplementary Requirements)	Ultrasonic Testing (UT), Radiographic Testing (RT)	Spectrometer, Hardness Tester, Flaw Detector

Core Supplementary Information
Product Advantages	Application Scenarios (Typical A269 Service Conditions)
Strictly compliant with ASTM A269/A269M American Standard, excellent corrosion resistance, good processability, eco-friendly & hygienic, high cost-performance for global industrial applications	Chemical Industry, Food & Pharmaceutical, High/Low Temperature Tubing, Industrial Transportation, Municipal
