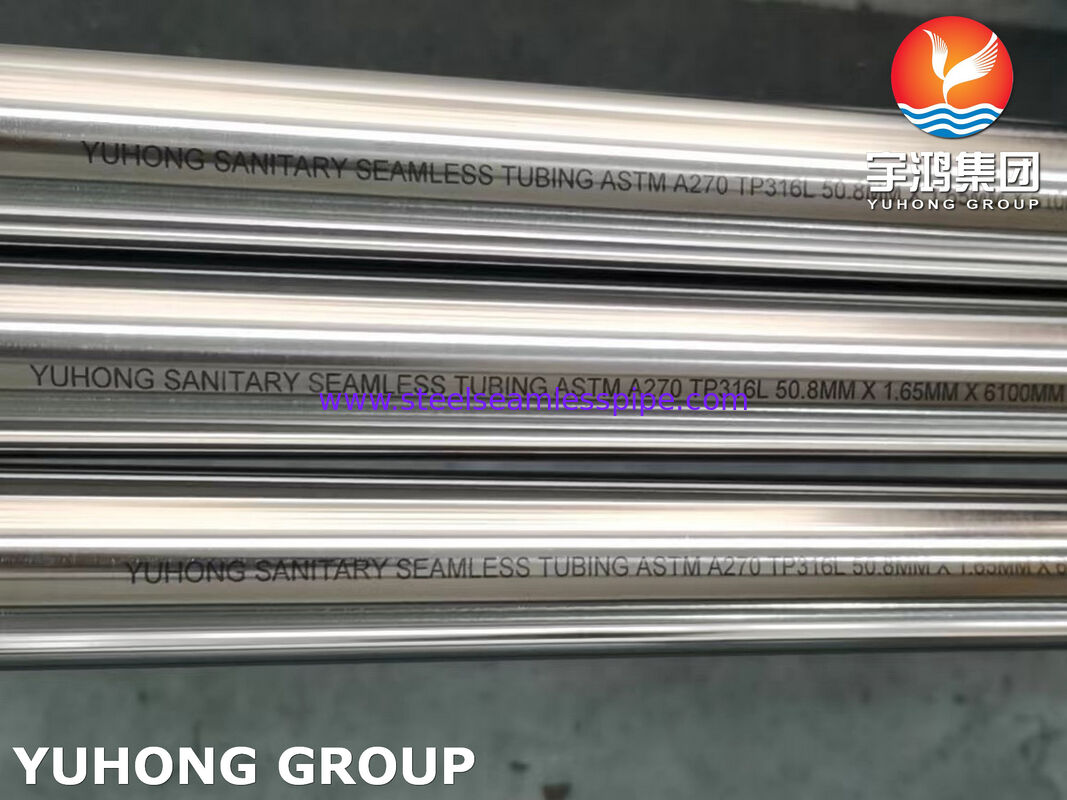

Stainless Steel ASTM A270 TP316L Sanitary Seamless Tube For Food Beverage Industry

Stainless Steel ASTM A270 TP316L Sanitary Seamless Tube For Food And Beverage Industry

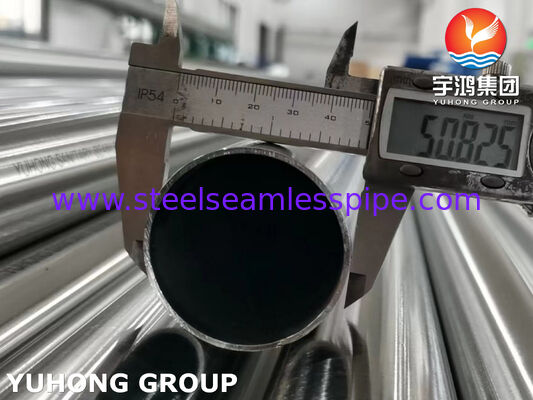

The ASTM A270 Sanitary tube is manufactured to meet stringent hygienic requirements. It is distinguished from standard industrial tubing by its high-purity internal surface finish, precise dimensional tolerances, and suitability for frequent cleaning and sterilization. The tubes are designed to prevent bacterial growth, resist product adhesion, and withstand corrosive cleaning agents like CIP (Clean-in-Place) solutions. ASTM A270 TP316L stainless steel sanitary tubes are widely used in the food, beverage, dairy, pharmaceutical, and bioprocessing industries. YUHONG GROUP is professional in producing sanitary tubes. The regular outer diameter size range from 6mm to 76.2mm, while the regular wall thickness can be 0.5mm to 3.4mm.

Raw Materials:

• TP304/304L: The most commonly used stainless steel grade for sanitary applications. It offers excellent general corrosion resistance, good formability, and is cost-effective for most food and beverage services not involving highly chloridic or acidic environments.
• TP316/316L: Contains molybdenum (2–3%), which provides superior resistance to chlorides and acids (e.g., salt, vinegar, dairy acids). It is the preferred choice for more aggressive environments, such as brewing, juice processing, or coastal facilities.

Manufacturing Processes:

(1) Seamless Sanitary Tube:

• Produced by extruding or piercing a solid billet, then cold drawing to size.
• Advantages: No weld seam, uniform structure, preferred for high-pressure applications.
• Process: Billet → Heating → Piercing → Extrusion → Cold Drawing → Annealing → Pickling/Passivating → Polishing → Inspection.

(2) Welded Sanitary Tube:

• Formed from a rolled strip (plate or coil) and welded longitudinally using Automatic Orbital Welding (TIG) with no filler metal.
• Weld bead is controlled, smoothed, and fully polished to match parent metal finish.
• Advantages: Cost-effective, excellent dimensional consistency, widely used for most sanitary applications.

Post-Manufacturing: Both types undergo solution annealing (heat treatment) to restore corrosion properties, pickling to remove scale, passivation, and internal mechanical/electropolishing.

Key Features of Stainless Steel Sanitary Tubes:

• Hygienic Design: Smooth, crevice-free interior prevents bacterial harborage.
• Corrosion Resistance: Resists stains, oxidation, and corrosive food products and cleaning chemicals.
• Durability: High strength, withstands thermal cycling and mechanical cleaning.
• Cleanability: Compatible with CIP/SIP (Steam-in-Place) systems.
• Non-Toxic & Non-Reactive: Does not leach elements or affect product taste/quality.
• Weldability: Excellent for orbital welding, ensuring smooth, continuous joints.

Different Applications in the Food & Beverage Industry:

• Liquid Transfer Lines: Milk, beer, wine, juice, soft drinks, cooking oils.
• Process Piping: For pumps, valves, heat exchangers, pasteurizers, homogenizers.
• CIP Systems: Chemical and rinse fluid lines.
• Bio-pharmaceutical & Dairy: High-purity water, WFI (Water for Injection), ingredient mixing.
• Brewery & Distillery: Fermentation, filtration, carbonation, and transfer lines.
• Food Processing: Syrups, sauces, purees, and slurry transport.
