Stainless Steel 304 Studded Fin Tube – High Temperature Heat Transfer Application

High-Performance ASTM A312 TP304 Stainless Steel Studded Fin Tube

1. What is the ASTM A312 TP304 Studded Fin Tube?

The ASTM A312 TP304 Stainless Steel Studded Fin Tube is a highly efficient heat transfer component specifically designed for extreme working environments. Unlike standard extruded or L-foot fin tubes, studded tubes feature metal studs welded directly onto the base pipe. Manufactured with premium A312 TP304 stainless steel, this product offers exceptional corrosion resistance and high-temperature stability. It is the ultimate solution for heavy-duty applications where severe fouling, highly corrosive fluids, and extreme thermal stress are present, ensuring prolonged service life and maximum heat exchange efficiency.

2. Structure & Welding Process of TP304 Stainless Steel Studded Fin Tube

Our studded tubes are engineered with precision to guarantee a 100% metal-to-metal bond, ensuring zero thermal contact resistance.

• Base Pipe (ASTM A312 TP304): The core of the tube is made of seamless or welded A312 TP304 stainless steel pipe, known for its excellent tensile strength and oxidation resistance in high-temperature settings.

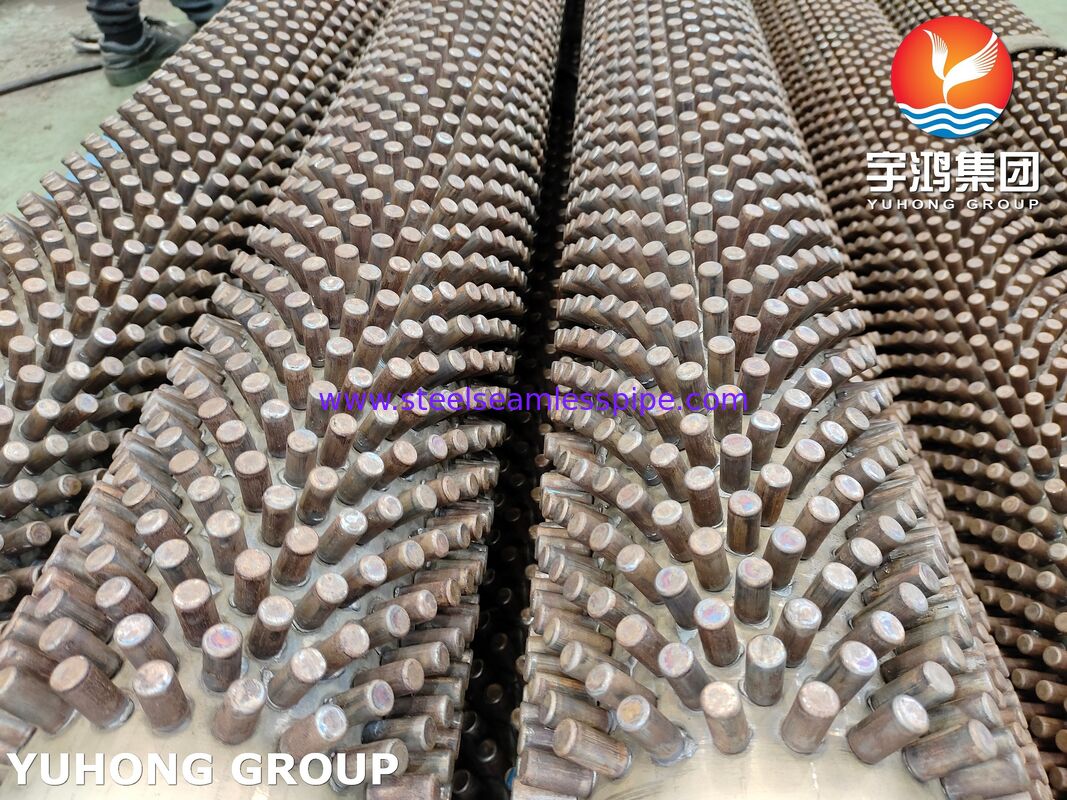

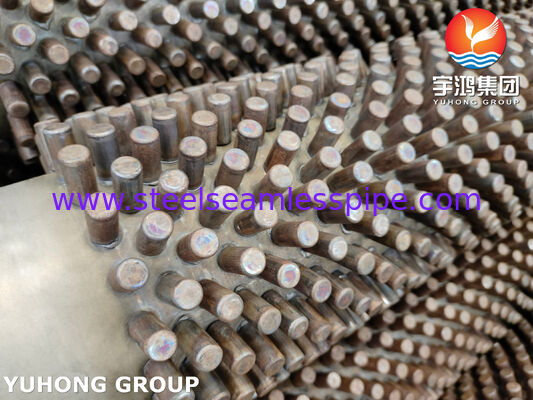

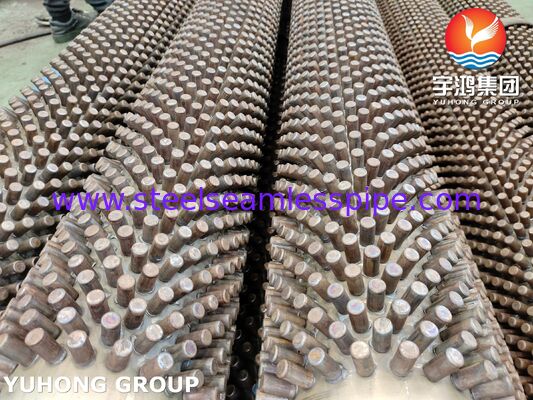

• Studs / Fins (Stainless Steel 304 or Custom): Cylindrical or elliptical metal studs are attached to the exterior of the base pipe. The stud material typically matches the base pipe (SS 304) to prevent galvanic corrosion and ensure uniform thermal expansion.

• Embedding / Welding Process (Resistance Welding): We utilize an advanced automated Electric Resistance Welding (ERW) process. A heavy electric current is passed through the stud and the base pipe, melting the contact point instantly. Forging pressure is then applied to weld the stud directly into the base metal. This process creates a flawless metallurgical bond, meaning the studs will never loosen, peel, or detach, even under severe thermal cycling.

3. Chemical Composition of A312 TP304 Base Pipe & Studs

To ensure the highest material reliability, the chemical composition of our TP304 Stainless Steel Studded Tubes strictly adheres to ASTM/ASME standards.

4. Dimensional Tolerance Range for SS 304 Studded Fin Tube

Precision is critical for heat exchanger assembly. Our 304 Stainless Steel Studded Fin Tubes are manufactured within strict dimensional tolerances to guarantee easy installation and optimal fluid dynamics.

5. Performance Advantages of 304 Stainless Steel Studded Tubes

Choosing our ASTM A312 TP304 Studded Fin Tubes provides your engineering projects with unbeatable benefits:

• Superior Fouling Resistance: The studded design creates high turbulence in the gas flow, significantly reducing soot and ash accumulation. They are incredibly easy to clean using standard shot blasting or mechanical cleaning methods.

• Extreme Temperature Tolerance: Thanks to the A312 TP304 material and the ERW welding process, the tubes can operate safely in environments exceeding 700°C (1292°F) without stud degradation.

• Zero Contact Resistance: The solid welded joint means heat transfers directly from the base pipe to the studs without the thermal bottleneck seen in mechanically bonded fins.

• Corrosion Resistance: The 18% Chromium and 8% Nickel content ensures outstanding defense against atmospheric corrosion, organic chemicals, and high-temperature oxidation.

6. Detailed Industrial Applications of A312 TP304 Studded Fin Tube

Because of their rugged construction, A312 TP304 Stainless Steel Studded Tubes are widely specified in industries dealing with dirty gases and high temperatures:

• Petrochemical Refineries: Convection sections of fired heaters, cracking furnaces, and visbreakers.

• Power Generation: Waste Heat Recovery Units (WHRU), Heat Recovery Steam Generators (HRSG), and economizers.

• Chemical Processing: Sulfuric acid plants, syngas coolers, and chemical reactors.

• Metallurgy & Steel Mills: Flue gas coolers and heavy-duty industrial furnaces.

7. Why Choose Our TP304 Studded Fin Tube?

With over 15 years of manufacturing experience in the global heat transfer industry, we are your trusted partner for custom finned tubes.

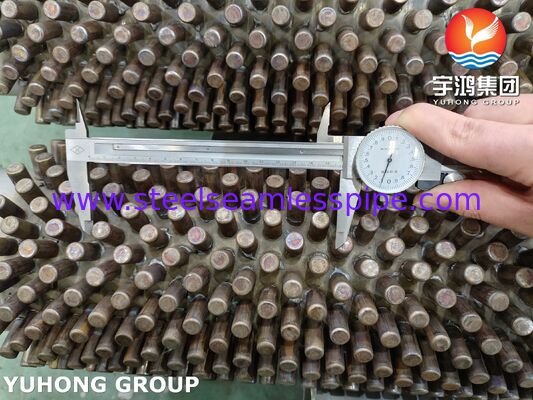

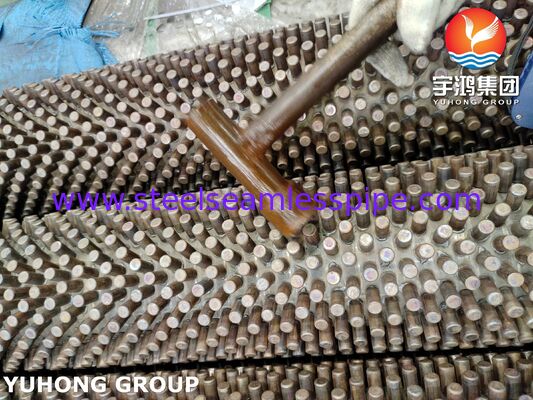

• Rigorous Quality Control: Every TP304 Studded Tube undergoes stringent testing, including Pull-off Tests (to guarantee weld strength), Dye Penetrant Inspection (PT) for the welds, and Hydrostatic Testing for the base pipe.

• Advanced Equipment: We operate state-of-the-art automatic resistance welding machines, ensuring high production capacity (up to 3,000 meters per week) and consistent weld quality.

• Customization Capabilities: Whether you need specific stud densities (e.g., 60 studs per row), unique lengths, or different base-to-stud material combinations (like SS304 base with Carbon Steel studs), our engineering team can manufacture exactly to your drawings.

• Global Export Experience: We provide robust, seaworthy wooden box packaging to protect the studs from bending during transit, ensuring your products arrive in perfect condition anywhere in the world.
