Premium High Frequency Welded Finned Tube: ASTM A335 P22 Base Tube with 11-13Cr Stainless Steel Fin

Comprehensive Introduction to A335 P22 & 11-13Cr HFW Finned Tubes

High Frequency Welded (HFW) finned tubes are critical components in heavy-duty heat exchangers, boilers, and waste heat recovery systems. By combining the high-temperature strength of the ASTM A335 P22 alloy steel base tube with the exceptional corrosion and oxidation resistance of the 11-13Cr ferritic stainless steel fin, this composite tubular product delivers outstanding thermal efficiency and an extended service life in harsh, high-temperature working environments.

Structure and Embedding Process of A335 P22 Base Tube and 11-13Cr Fin

Our HFW finned tubes feature a robust and thermodynamically optimized structure, manufactured through an advanced solid-state welding process:

• Base Tube (ASTM A335 P22): A seamless ferritic alloy-steel pipe designed specifically for high-temperature service. It provides the core structural integrity and pressure containment.

• Fin Material (11-13Cr Stainless Steel): A continuous strip of ferritic stainless steel (typically equivalent to AISI 409/410/410S) that offers excellent resistance to sulfur-bearing gases and oxidation.

• High-Frequency Welding Process: Unlike mechanical embedding or extrusion, the 11-13Cr fin strip is spirally wound onto the A335 P22 base tube while a high-frequency electrical current heats both the base tube surface and the fin edge to a forging temperature. Pressure is then applied to forge them together, creating a true metallurgical bond. This guarantees 100% heat transfer efficiency and zero contact resistance.

Chemical Composition: ASTM A335 P22 Base Tube vs. 11-13Cr Fin

Strict adherence to chemical composition is vital for the performance of high-temperature finned tubes. Below is the certified chemical breakdown of the materials we use:

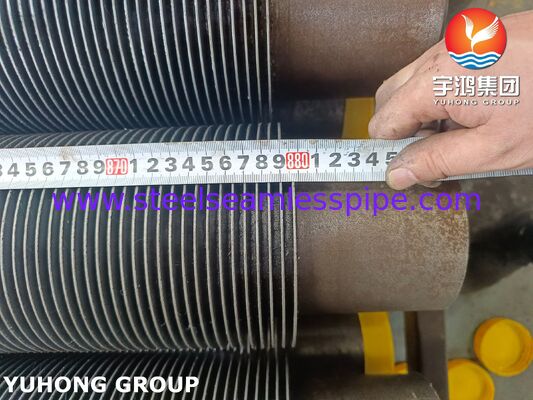

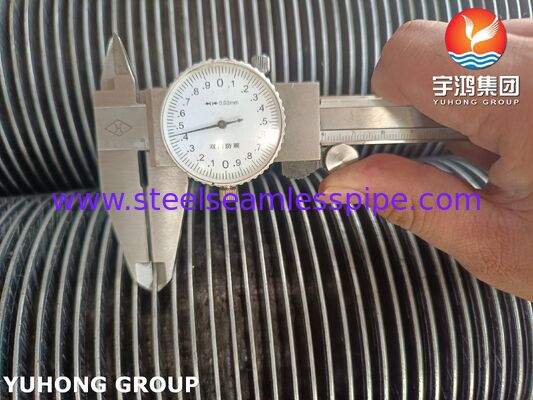

Dimensional Tolerance Range for A335 P22 + 11-13Cr Finned Tubes

To ensure seamless integration into your heat exchanger bundles, our manufacturing process strictly follows international standards. We offer highly customizable dimensions with tight manufacturing tolerances:

Key Performance Advantages of A335 P22 & 11-13Cr Finned Tubes

• Exceptional Heat Resistance (A335 P22): The base tube easily withstands continuous operating temperatures up to 600°C (1112°F), making it ideal for power plant superheaters.

• Superior Corrosion Resistance (11-13Cr): The stainless steel fin resists oxidation and high-temperature gas corrosion, significantly reducing fouling and scaling.

• Maximum Heat Transfer Efficiency: The high-frequency welding creates a seamless metallurgical joint, preventing thermal fatigue and eliminating air-gap thermal resistance over time.

• High Mechanical Strength: The welded fins increase the overall rigidity of the A335 P22 tube, providing excellent resistance to mechanical vibrations inside the boiler casing.

Detailed Application Fields for A335 P22 + 11-13Cr Finned Tubes

Due to the synergistic properties of A335 P22 and 11-13Cr, these finned tubes are the preferred choice for heavy industrial applications:

• Power Generation Boiler Systems: Used in Economizers, Superheaters, and Air Preheaters in coal-fired and gas-fired power plants.

• Heat Recovery Steam Generators (HRSG): Highly effective in capturing exhaust gas heat from gas turbines.

• Petrochemical Refineries: Fired heaters, process fluid coolers, and convection sections of cracking furnaces.

• Waste-to-Energy Plants: Enduring the highly corrosive and high-temperature flue gases found in municipal solid waste incinerators.

Why Choose Us for Your A335 P22 and 11-13Cr Finned Tube Projects?

With over a decade of experience in manufacturing industrial heat transfer components, we are your trusted global partner:

• Premium Raw Materials: We source our A335 P22 alloy tubes and 11-13Cr stainless steel coils only from ISO 9001 certified, world-renowned steel mills.

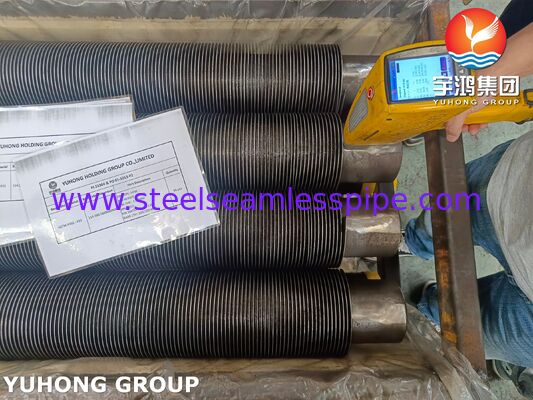

• Strict Quality Control (QC): Every A335 P22 and 11-13Cr finned tube undergoes rigorous testing, including Hydrostatic Testing, Eddy Current Testing (ECT), and Weld Peel Tests, ensuring 100% weld integrity.

• Custom Engineering: Our engineering team can adjust fin pitch, height, and tube length exactly to your thermodynamic drawings.

• Export-Ready Packaging: We use steel-framed wooden crates with internal desiccant and anti-rust wrapping, guaranteeing your A335 P22 and 11-13Cr finned tubes arrive in pristine condition, regardless of ocean transit times.
