ASTM A270 TP304 Sanitary Pipe Corrosion Resistant, Ultra-Smooth for Dairy, Food Processing, Beverage Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001, ASME
Model Number:	TP304 , SUS304 , 1.4301 , 08X18H10

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	5-80 Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	15000tons/month

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (323)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (157)

Fin Tube (704)

Heat Exchanger (30)

Heat Exchanger Tube (459)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (103)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (861)

Steel Flange (660)

Others (405)

Cladding Parts (8)

Detailed Product Description

NDT:	Eddy Current Test, Hydrostatic Test, Ultrasonic Test	Standard:	ASTM A270
Material:	TP304 , SUS304 , 1.4301 , 08X18H10	OD:	1/2" (12.7mm), 5/8" (15.88mm), 3/4"(19.05mm), 1" (25.4mm), 1-1/4" (31.75mm), 1-1/2"(38.1mm) 1-3/4"(44.45mm), 2" (50.8mm), 2-1/4" (57.15mm) 2-1/2" (63.5mm) 3" (76.2mm),4" (101.6mm)
Wall Thickness:	22BWG ( 0.71mm), 20BWG (0.89mm), 18BWG(1.24mm), 16BWG(1.65mm), 14BWG(2.11mm), 12BWG(2.77mm), 10BWG(3.4mm)	Surface:	Annealing
Highlight:	ASTM A270 TP304 sanitary pipe , corrosion resistant stainless steel pipe , ultra-smooth food processing tubing

ASTM A270 TP304 Sanitary Pipe Corrosion Resistant, Ultra-Smooth for Dairy, Food Processing, Beverage Equipment

ASTM A270 TP304 austenitic stainless steel seamless pipe conforms to the American Society for Testing and Materials (ASTM) A270/A270M standards. It is an 18-8 type stainless steel, with a seamless structure achieved through hot rolling/cold drawing, resulting in a weld-free, high-pressure-resistant, and high-strength finish.

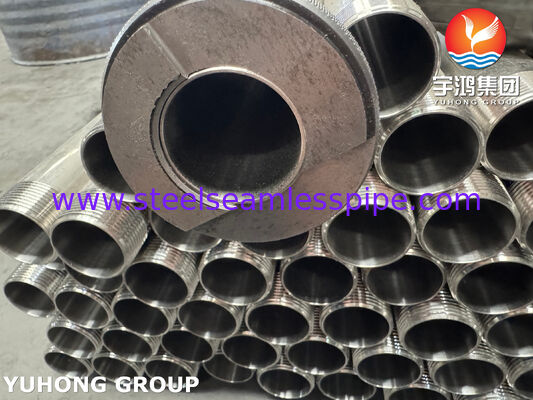

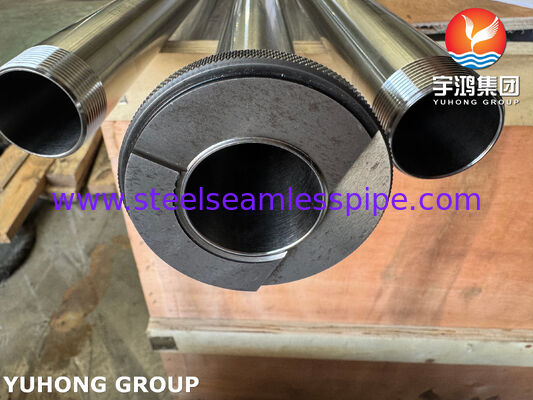

The pipe ends are precision CNC threaded, ensuring high accuracy and concentricity. They can be directly and quickly screwed onto standard fittings, valves, and connectors, achieving a tight seal without welding. The pipes are replaceable, leak-proof, and pressure-resistant.

TP304 material offers excellent corrosion resistance, is hygienic and non-toxic, easy to clean, and has a smooth inner wall. It meets 3-A and FDA hygiene requirements, is resistant to high-temperature steam sterilization, and is compatible with CIP/SIP cleanroom systems.

Widely used in food and beverage, pharmaceutical, bioengineering, clean fluid, water supply and drainage, and chemical piping industries, it is an ideal pipe material for sanitary and industrial-grade threaded connections.

Chemical Composition
Element	Composition (wt%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Silicon (Si)	≤ 1.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Iron (Fe)	Balance

Mechanical Properties
Property	Minimum Requirement
Tensile Strength	≥ 515 MPa (75 ksi)
Yield Strength (0.2% offset)	≥ 205 MPa (30 ksi)
Elongation (in 2 in / 50 mm)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Application

Food and Beverage, Dairy Processing, Beverage Production
Water Systems: Primarily used for high-purity and injectable water.
Process and Production: Used in aseptic filling lines, bioreactors, pharmaceutical transfer systems, and fermentation systems; its smooth inner walls prevent material residue and cross-contamination.
Cosmetics and Fine Chemicals: Used in the production and delivery pipelines of high-end skincare products, toners, lotions, etc.
Process Piping: Used in oil refining, fertilizer, papermaking, and petrochemical industries requiring low corrosivity fluids.
Other General Industries, General Fluid Transportation: Used for tap water, chloride-free water and gas, cooling water circulation systems, and low-pressure steam pipelines.
Manufacturing and System Components: Used in hydraulic systems and heat exchanger tube bundles.
