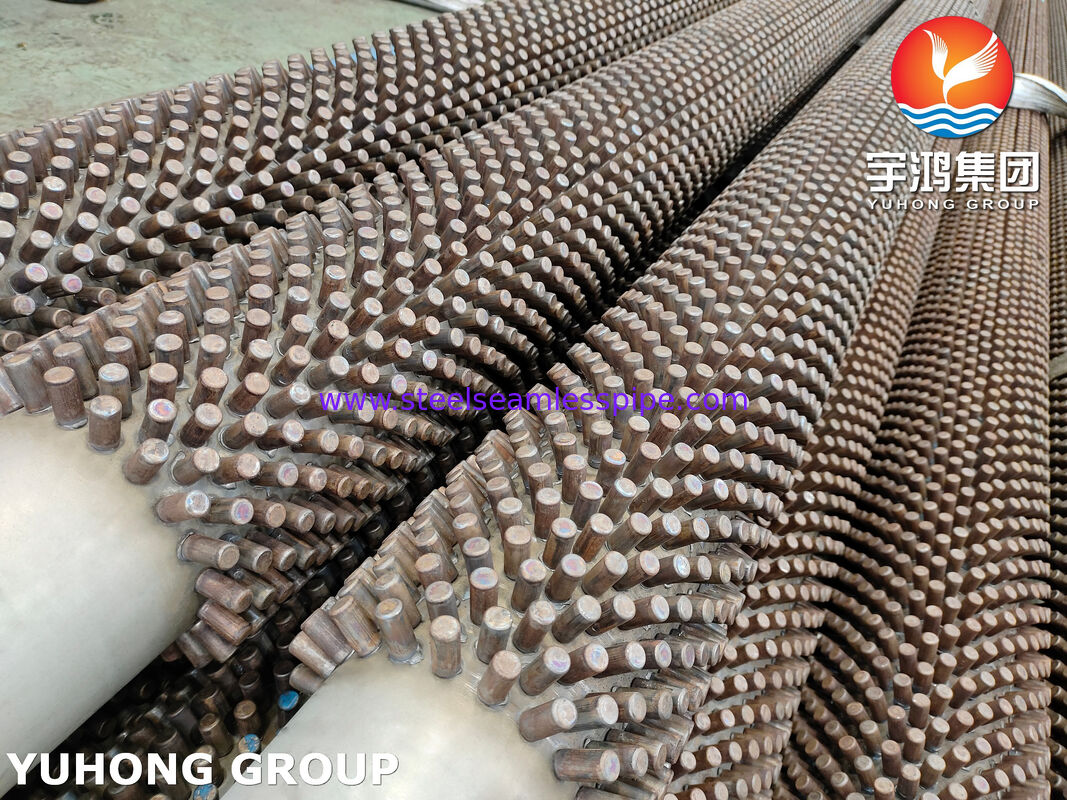

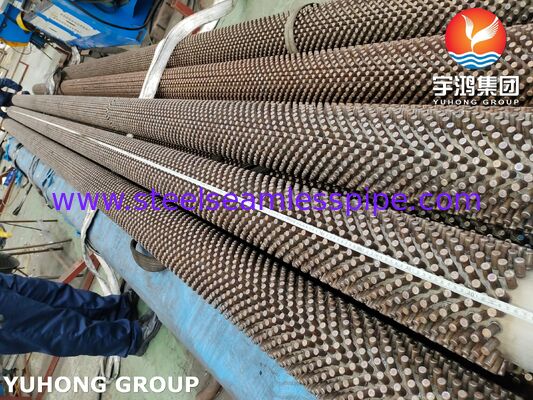

ASTM A312 TP304 Studded Fin Tubes for High-Temperature Heat Recovery

ASTM A312 TP304 Studded Fin Tubes are engineered heat transfer components specifically designed for high-temperature heat recovery and process heating applications. Manufactured from premium TP304 austenitic stainless steel tubes with resistance-welded studs uniformly distributed over the external surface, these tubes provide significantly increased heat transfer area while maintaining excellent structural integrity under demanding operating conditions.

Studded fin tubes are widely used in refinery heaters, petrochemical furnaces, waste heat recovery units, fluidized bed boilers, and industrial process heaters where elevated temperatures, thermal cycling, and corrosive environments require reliable long-term performance.

The studded surface enhances heat transfer efficiency by increasing external surface area and promoting turbulence in gas flow, allowing greater thermal energy recovery from hot flue gases and process streams.

• Excellent heat transfer performance in high-temperature environments
• Manufactured from corrosion-resistant ASTM A312 TP304 stainless steel
• Strong metallurgical bond between studs and base tube
• Superior resistance to oxidation and scaling
• Reduced fouling compared with closely spaced finned surfaces
• High mechanical durability under thermal cycling conditions
• Suitable for dirty gas and particulate-laden applications
• Long service life in refinery and petrochemical operations
• Custom stud configurations available to meet thermal design requirements

• Fired Heater Convection Sections: Used extensively in refinery and petrochemical fired heaters to recover heat from flue gases before discharge.
• Waste Heat Recovery Systems: Captures thermal energy from industrial exhaust streams to improve overall plant efficiency.
• Fluidized Bed Boilers: Provides enhanced heat transfer performance in abrasive and high-temperature operating environments.
• Waste Heat Boilers: Improves heat recovery from process gases while maintaining operational reliability.
• Petrochemical and Chemical Processing Plants: Suitable for process heaters, reformers, economizers, and energy recovery equipment.
• Power Generation Facilities: Applied in heat recovery systems where efficient thermal transfer contributes to reduced fuel consumption.

Studded fin tubes are produced by automatically welding individual studs onto the external surface of the TP304 stainless steel tube. Precision-controlled welding parameters ensure uniform stud placement and consistent weld quality.

The resulting construction creates a highly durable heat transfer surface capable of withstanding elevated temperatures, mechanical stress, and continuous industrial operation.

The following dimensions represent common manufacturing capabilities. Custom dimensions can be produced according to project specifications.

The chromium-nickel alloy composition provides excellent corrosion resistance, oxidation resistance, and durability in high-temperature industrial environments.

These properties enable TP304 studded fin tubes to withstand pressure fluctuations, thermal expansion, and demanding operating conditions encountered in industrial heat transfer systems.

Every batch of ASTM A312 TP304 Studded Fin Tubes undergoes rigorous inspection procedures to ensure compliance with customer specifications and international standards.

• Mill Test Certificate review
• Positive Material Identification (PMI)
• Chemical composition verification

• Outside diameter measurement
• Wall thickness verification
• Tube straightness inspection

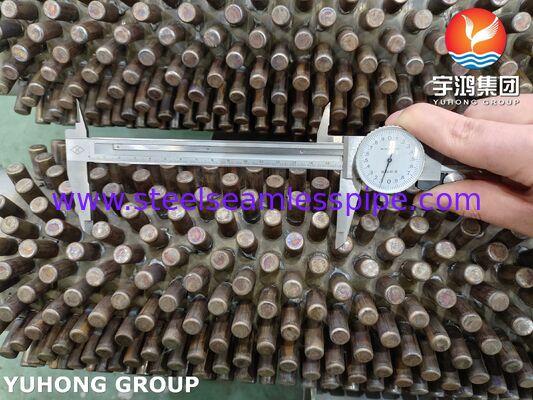

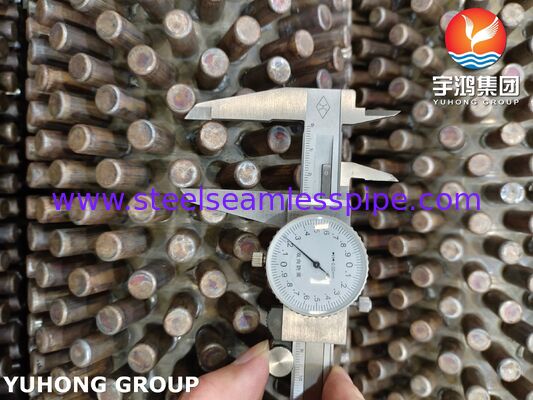

• Stud height and spacing measurement
• Length tolerance verification

• Visual weld examination
• Stud attachment verification
• Weld continuity assessment

• Eddy Current Testing (ECT)
• Ultrasonic Testing (UT)
• Liquid Penetrant Testing (PT) when required
• Surface defect examination

• Tensile testing
• Flattening test
• Flaring test
• Hardness testing

• Hydrostatic testing according to project requirements
• Leak-tightness verification

• Surface finish examination
• Marking and traceability verification
• Packaging inspection
• Documentation review

• Enhanced Thermal Efficiency: The welded stud configuration substantially increases the external heat transfer area, enabling greater heat recovery from high-temperature gas streams.
• Excellent Corrosion Resistance: TP304 stainless steel performs reliably in oxidizing atmospheres and many industrial process environments.
• Fouling Resistance: The studded geometry helps maintain heat transfer efficiency in applications involving particulate matter and dirty exhaust gases.
• Reduced Operating Costs: Improved heat recovery contributes to lower fuel consumption and higher process efficiency.
• Long Service Life: The combination of premium stainless steel and robust stud welding technology provides exceptional durability in demanding industrial applications.

• ASTM A312
• ASTM A370
• ASME Boiler and Pressure Vessel Code
• EN 10204 3.1 Certification
• ISO 9001 Quality Management System
• Customer-specific project requirements
