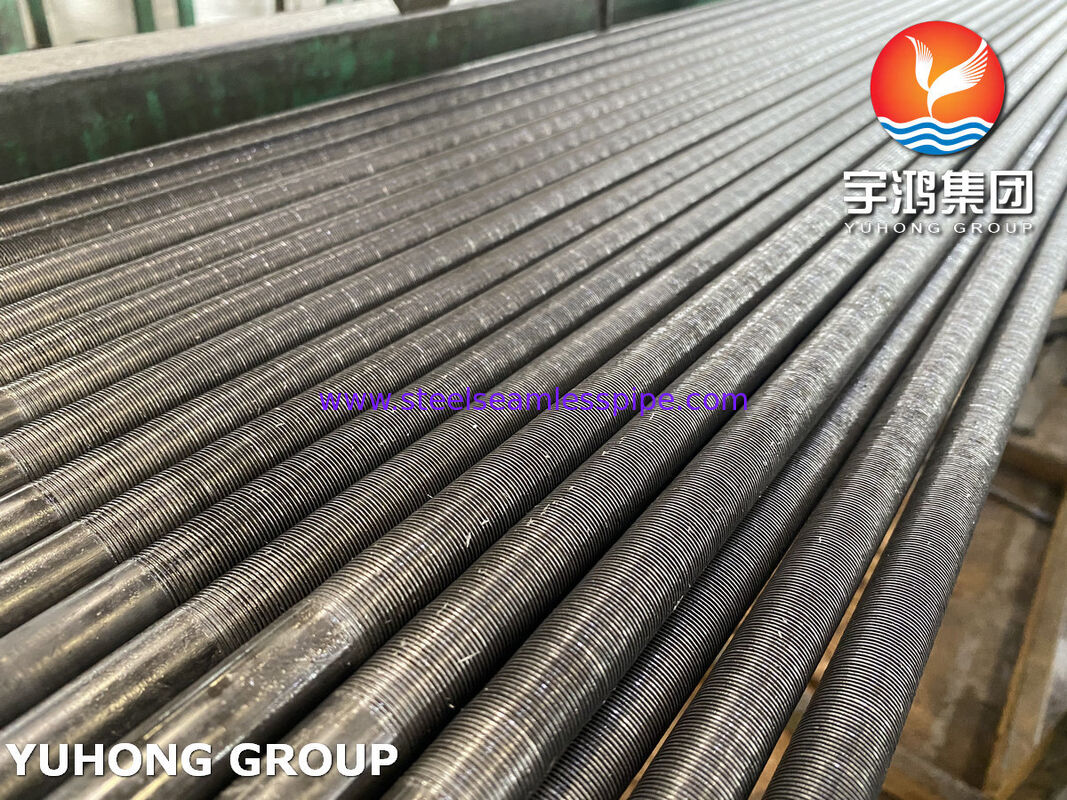

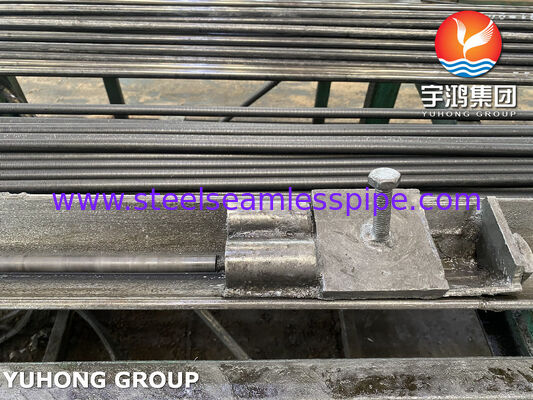

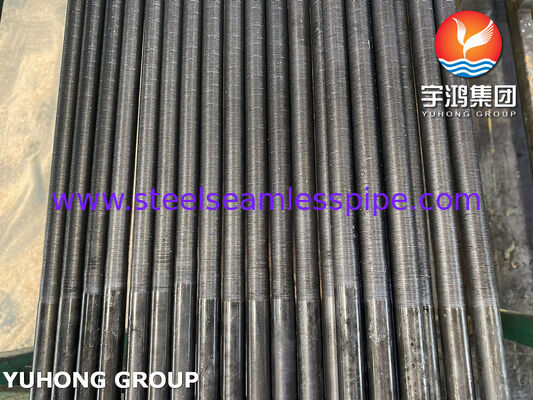

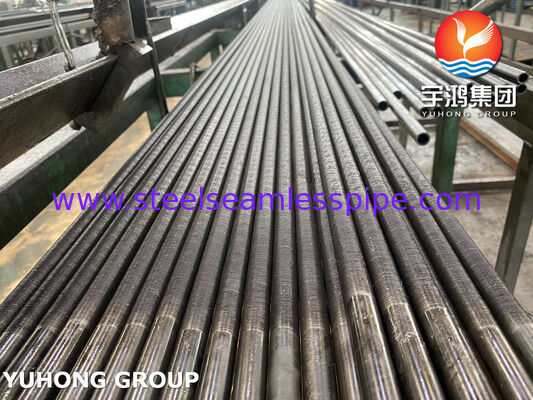

Low-Finned Tubes for Condensers – ASTM A179 Carbon Steel Low Fin Tube
Product Overview
ASTM A179 Low-Finned Tubes for Condensers are specially engineered heat transfer tubes designed to increase thermal efficiency in shell-and-tube condensers, evaporators, and other compact heat exchanger systems. Manufactured from high-quality ASTM A179 seamless cold-drawn low carbon steel tubes, these tubes feature an integral fin structure formed on the outside tube surface, significantly expanding the heat transfer area while maintaining excellent mechanical strength and pressure resistance.
Compared with conventional smooth tubes, low-finned tubes provide a larger external surface area, improved fluid turbulence, and enhanced heat exchange performance without significantly increasing equipment size. They are widely used in steam condensers, refrigeration condensers, power plant heat exchangers, HVAC systems, and industrial process cooling equipment.
Our ASTM A179 low-finned tubes are manufactured under strict quality control procedures to ensure dimensional accuracy, reliable performance, and long service life in demanding heat transfer applications.
ASTM A179 Low-Finned Tube Manufacturing Features
1. Integral Low-Fin Design
The fins are mechanically formed directly from the parent tube wall, creating a strong metallurgical bond between the tube and fins. This integral construction eliminates the risk of fin loosening or contact resistance found in externally attached fin designs.
Key advantages include:
- Increased heat transfer surface area
- Improved condenser efficiency
- Better resistance to vibration and thermal cycling
- Compact heat exchanger design
- Reduced operating and maintenance costs
2. ASTM A179 Carbon Steel Tube Base
ASTM A179 specifies seamless cold-drawn low carbon steel tubes commonly used for heat exchangers and condensers. The material provides:
- Excellent thermal conductivity
- Good weldability
- Stable mechanical properties
- Reliable performance under moderate temperature and pressure conditions
Common Specifications of ASTM A179 Low-Finned Tubes
| Item |
Specification |
| Product Type |
Integral Low-Finned Tube |
| Base Material |
ASTM A179 / ASME SA179 Carbon Steel |
| Manufacturing Process |
Seamless Cold Drawn + Integral Fin Rolling |
| Application |
Condensers, Heat Exchangers, Evaporators |
| Tube Type |
Seamless |
| Fin Type |
Low Height Integral Fins |
| Surface Condition |
Annealed / Pickled / Bright Finish |
| Length |
Usually 3–12 m or customized |
| Standard |
ASTM A179 / ASME SA179 |
Common Size Range
ASTM A179 low-finned tubes can be manufactured according to customer heat exchanger designs. Typical dimensions include:
Tube Outside Diameter Range
- 12.7 mm (1/2")
- 15.88 mm (5/8")
- 19.05 mm (3/4")
- 22.0 mm
- 25.4 mm (1")
- 31.75 mm (1-1/4")
Tube Wall Thickness Range
- 1.0 mm
- 1.2 mm
- 1.5 mm
- 1.65 mm
- 2.0 mm
- 2.5 mm
Typical Fin Parameters
| Parameter |
Typical Range |
| Fin Height |
0.8–2.5 mm |
| Fin Density |
16–40 fins/inch |
| Fin Pitch |
0.6–1.6 mm |
| Fin Thickness |
0.15–0.35 mm |
| Fin Diameter Increase |
Approximately 1.2–1.6 times tube OD |
Customized dimensions are available based on condenser thermal design requirements.
Chemical Composition of ASTM A179 Material
Typical chemical requirements according to ASTM A179:
| Element |
Composition (%) |
| Carbon (C) |
0.06–0.18 |
| Manganese (Mn) |
0.27–0.63 |
| Phosphorus (P) |
≤ 0.035 |
| Sulfur (S) |
≤ 0.035 |
The controlled low carbon content provides excellent ductility and cold-forming capability, making ASTM A179 suitable for integral fin manufacturing.
Mechanical Properties of ASTM A179 Low-Finned Tubes
| Property |
Requirement |
| Tensile Strength |
≥ 325 MPa |
| Yield Strength |
≥ 180 MPa |
| Elongation |
≥ 35% |
Mechanical properties ensure the tube can withstand:
- Expansion during heat exchanger fabrication
- Thermal stress caused by temperature changes
- Internal pressure operation
- Mechanical handling during installation
Inspection and Testing Methods
To guarantee product reliability, ASTM A179 low-finned tubes undergo comprehensive inspection and testing.
1. Chemical Analysis
Each production batch is analyzed using:
- Optical Emission Spectrometer (OES)
- Chemical composition verification
This ensures compliance with ASTM A179 requirements.
2. Dimensional Inspection
Inspection includes:
- Outside diameter measurement
- Wall thickness measurement
- Fin height inspection
- Fin pitch measurement
- Tube length verification
- Straightness inspection
Advanced measuring equipment ensures accurate heat transfer surface dimensions.
3. Mechanical Testing
Mechanical tests include:
Tensile Test
Verifies:
- Tensile strength
- Yield strength
- Elongation performance
Hardness Test
Ensures proper material condition and manufacturing consistency.
4. Non-Destructive Testing (NDT)
Available testing methods include:
Eddy Current Testing (ECT)
Detects:
- Surface defects
- Cracks
- Material discontinuities
Ultrasonic Testing (UT)
Checks:
- Internal defects
- Wall thickness uniformity
Hydrostatic Test
Confirms:
- Pressure resistance
- Tube integrity
- Leakage prevention
5. Surface and Visual Inspection
Each tube is inspected for:
- Fin deformation
- Surface scratches
- Oxidation
- Manufacturing defects
- Cleanliness requirements
Applications of ASTM A179 Low-Finned Tubes
ASTM A179 low-finned condenser tubes are widely applied in:
Steam Condensers
Used in:
- Power generation systems
- Industrial steam recovery units
- Process plants
Refrigeration Condensers
Suitable for:
- Chillers
- HVAC refrigeration systems
- Cooling equipment
Shell-and-Tube Heat Exchangers
Used for:
- Chemical processing
- Petrochemical systems
- Industrial cooling applications
Evaporators and Process Heat Transfer Equipment
Providing enhanced heat transfer efficiency in compact designs.
Advantages of ASTM A179 Low-Finned Tubes
- Higher heat transfer capacity compared with smooth tubes
- Reduced exchanger size and material consumption
- Excellent tube-to-fin thermal conductivity
- Reliable mechanical performance
- Suitable for high-volume condenser production
- Cost-effective carbon steel solution
- Compatible with standard shell-and-tube heat exchanger designs
Why Choose Our ASTM A179 Low-Finned Tubes
We manufacture low-finned tubes with strict control over:
- Raw material quality
- Tube dimensions
- Fin geometry accuracy
- Surface finish
- Mechanical performance
- Non-destructive testing procedures
Our ASTM A179 low-finned tubes provide an efficient and economical heat transfer solution for condenser manufacturers, EPC contractors, and industrial heat exchanger suppliers worldwide.
