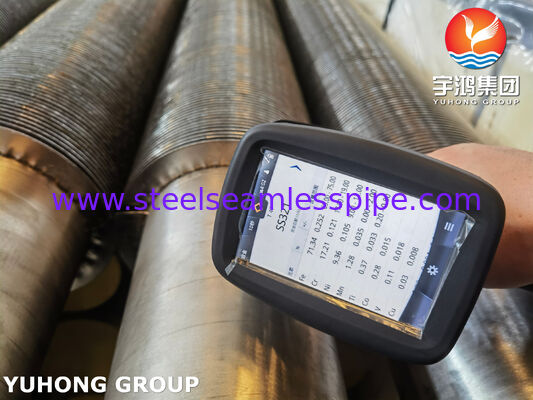

ASTM A269 TP321 High Frequency Welded Spiral Finned Tubes for Heat Exchangers

High Frequency Welded Finned Tubes – ASTM A269 TP321 Stainless Steel Base Tube with Carbon Steel Fins

Product Introduction

Our High Frequency Welded Finned Tubes (HF welded finned tubes) are premium heat transfer components designed for demanding industrial applications. Manufactured using advanced high-frequency welding technology, these tubes feature an ASTM A269 TP321 stainless steel base tube combined with carbon steel fins. This combination delivers excellent corrosion resistance on the tube side and superior heat transfer performance on the fin side, making them ideal for harsh operating environments.

Product Material

• Base Tube Material: ASTM A269 TP321 / UNS S32100 Austenitic Stainless Steel
• Fin Material: High-Quality Carbon Steel (CS)

Tube Structure & Manufacturing Process

The finned tubes consist of three main elements:

• Base Tube — ASTM A269 TP321 seamless or welded stainless steel tube, providing excellent high-temperature corrosion resistance and strength.
• Fins — Continuous carbon steel strip helically wound around the base tube.
• Welding Process — High Frequency Welding (HF Welding), where the fin is continuously welded to the base tube using high-frequency current. This creates a strong, metallurgical bond with minimal heat-affected zone, ensuring high structural integrity and thermal efficiency.

The result is a robust spiral/helical welded finned tube with outstanding durability and heat dissipation performance.

Chemical Composition

Base Tube – ASTM A269 TP321 Stainless Steel (Weight %)

Fin Material – Carbon Steel (Typical)

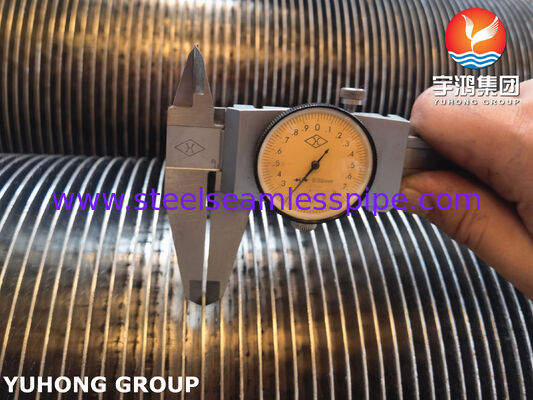

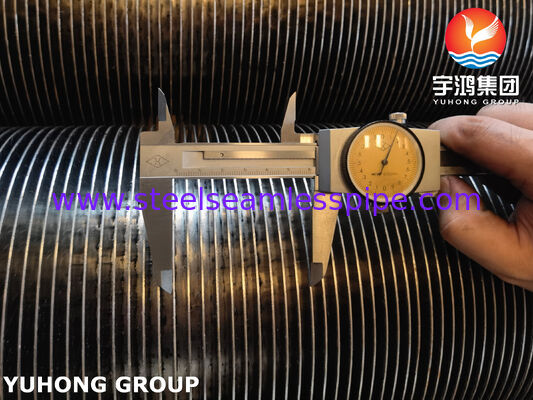

Dimensions & Tolerances

We maintain strict quality control with the following typical ranges and tolerances:

Performance Advantages

• Superior Heat Transfer: The high-frequency welded fins significantly increase the external surface area, improving heat exchange efficiency by 2–3 times compared to bare tubes.
• Strong Metallurgical Bond: HF welding ensures fins remain firmly attached even under high temperature, vibration, and thermal cycling.
• Excellent Corrosion Resistance: TP321 base tube offers outstanding resistance to intergranular corrosion and performs well in elevated temperatures up to 800°C.
• High Durability: Carbon steel fins provide cost-effective heat dissipation while the stainless base protects against corrosive media inside the tube.
• Energy Efficiency: Reduced fouling and improved airflow characteristics lead to lower operating costs.

Applications

Our ASTM A269 TP321 high frequency welded finned tubes are widely used in the following fields:

• Power Generation: Economizers, air preheaters, and waste heat recovery boilers.
• Petrochemical & Refining: Fired heaters, heat exchangers, and cracking furnaces.
• Chemical Processing: High-temperature reactors and condensers.
• Boiler Systems: Superheaters, reheaters, and flue gas coolers.
• HVAC & Industrial Dryers: Air-cooled heat exchangers and large drying systems.
• Marine & Offshore: Heat recovery units in harsh saline environments.

Why Choose Us

With over 15 years of experience in the heat transfer industry, we specialize in manufacturing high-quality finned tubes for global clients. Our advantages include:

• Advanced high-frequency welding production lines with strict process control.
• Full material traceability and third-party inspection (SGS, BV, TUV) available.
• Custom design capabilities to meet specific customer requirements for fin density, tube length, and material combinations.
• Competitive pricing combined with reliable delivery and professional technical support.
• Proven track record supplying major projects in Southeast Asia, Middle East, Europe, and South America.

Whether you need standard specifications or customized solutions, our team is ready to provide the most suitable High Frequency Welded Finned Tubes for your project.
