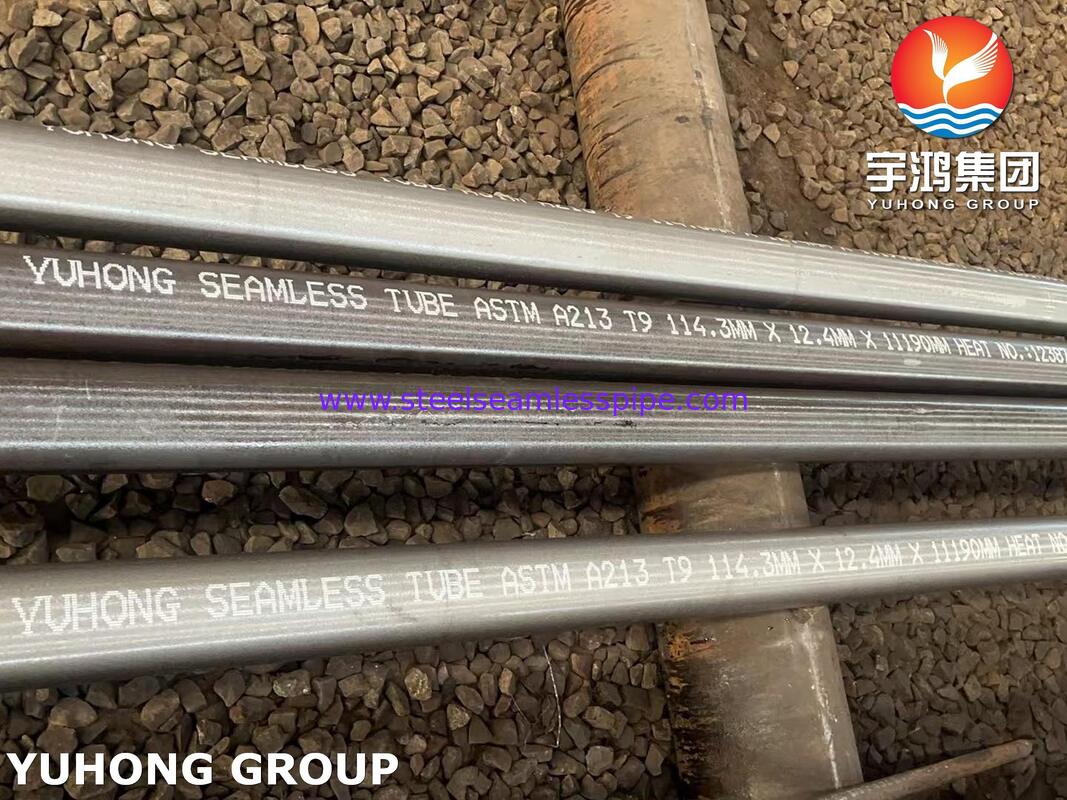

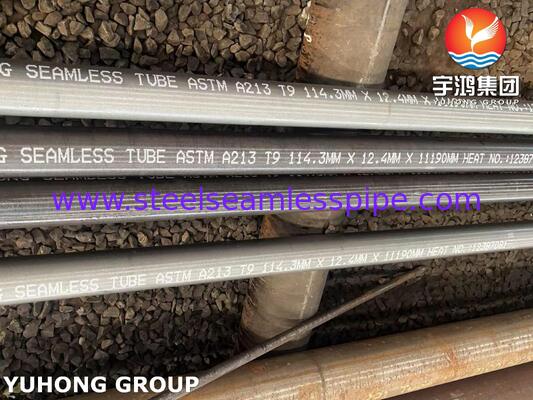

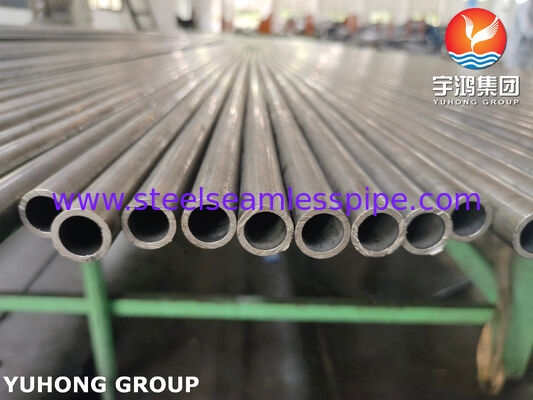

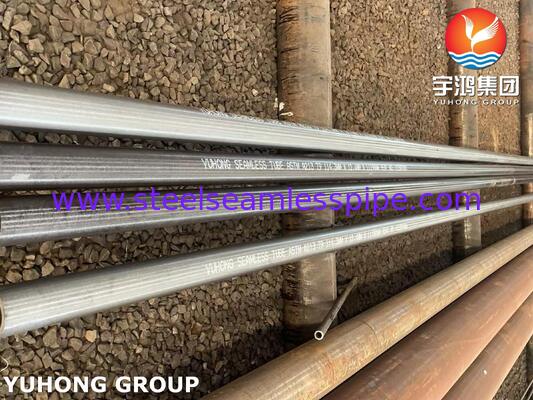

ASTM A213 T9 Boiler Tubes for Shell-and-Tube Heat Exchangers
Product Overview
ASTM A213 T9 boiler tubes are seamless ferritic alloy steel tubes specifically designed for high-temperature service in boilers, superheaters, reheaters, and shell-and-tube heat exchangers. Manufactured according to ASTM A213 / ASME SA213 specifications, T9 tubes contain chromium and molybdenum alloying elements, providing excellent resistance to oxidation, thermal fatigue, and high-temperature corrosion.
In shell-and-tube heat exchanger applications, ASTM A213 T9 tubes are widely used as heat transfer components where operating conditions involve elevated temperatures, pressure fluctuations, and demanding thermal cycles. The material’s enhanced creep strength and corrosion resistance make it suitable for petrochemical plants, power generation facilities, refinery units, and industrial heating systems.
Compared with conventional carbon steel tubes, T9 alloy steel tubing offers improved durability under prolonged exposure to high-temperature steam and combustion gases, helping extend equipment service life and reduce maintenance requirements.
Main Applications
ASTM A213 T9 boiler tubes are commonly used in:
- Shell-and-tube heat exchangers
- Industrial boilers
- Waste heat recovery boilers (WHRB)
- Superheaters and reheaters
- Steam generation systems
- Refinery heat exchangers
- Petrochemical processing equipment
- Power plant heat recovery systems
- High-temperature pressure vessels
The tubes are especially suitable for heat exchangers handling high-pressure steam, hot gases, and corrosive process fluids.
ASTM A213 T9 Boiler Tube Standard Specifications
| Item |
Specification |
| Product Type |
Seamless alloy steel boiler and heat exchanger tubes |
| Material Grade |
ASTM A213 T9 / ASME SA213 T9 |
| Material Classification |
Ferritic alloy steel |
| Manufacturing Process |
Cold drawn or hot finished seamless |
| Tube Surface |
Bright annealed, pickled, or polished finish |
| Heat Treatment |
Full annealing, isothermal annealing, or normalized and tempered |
| Application |
High-temperature heat exchanger and boiler service |
Common Size Range
ASTM A213 T9 tubes can be manufactured according to customer requirements. Typical sizes include:
Outside Diameter (OD)
Wall Thickness
Common Heat Exchanger Tube Sizes
| OD |
Wall Thickness |
| 12.7 mm |
1.2–2.0 mm |
| 15.88 mm |
1.5–2.5 mm |
| 19.05 mm |
1.5–3.0 mm |
| 25.4 mm |
2.0–4.0 mm |
| 31.75 mm |
2.5–5.0 mm |
| 38.1 mm |
3.0–6.0 mm |
| 44.5 mm |
3.0–6.5 mm |
| 50.8 mm |
3.5–8.0 mm |
| 63.5 mm |
4.0–10.0 mm |
| 76.2 mm |
5.0–12.7 mm |
Standard Lengths
- Single random length: 5,000–7,500 mm
- Double random length: 10,000–12,000 mm
- Customized lengths available according to heat exchanger design requirements
Chemical Composition of ASTM A213 T9
| Element |
Composition (%) |
| Carbon (C) |
0.15 max |
| Manganese (Mn) |
0.30–0.60 |
| Phosphorus (P) |
0.025 max |
| Sulfur (S) |
0.025 max |
| Silicon (Si) |
0.50 max |
| Chromium (Cr) |
8.00–10.00 |
| Molybdenum (Mo) |
0.90–1.10 |
The chromium content provides strong oxidation resistance, while molybdenum improves high-temperature strength and resistance to creep deformation.
Mechanical Properties of ASTM A213 T9 Tubes
| Property |
Requirement |
| Tensile Strength |
≥ 415 MPa |
| Yield Strength |
≥ 205 MPa |
| Elongation |
≥ 30% |
| Hardness |
≤ 217 HBW / 80 HRB / 95 HRB |
ASTM A213 T9 tubes maintain reliable mechanical performance during continuous operation at elevated temperatures, making them suitable for demanding heat exchanger environments.
Manufacturing Process
Our ASTM A213 T9 boiler tubes are produced through controlled seamless manufacturing processes:
- High-quality alloy steel billet selection
- Hot piercing and tube forming
- Cold drawing for accurate dimensions and improved surface quality
- Heat treatment according to ASTM A213 requirements
- Straightening and surface finishing
- Precision inspection before shipment
Advanced manufacturing control ensures excellent dimensional accuracy, uniform wall thickness, and dependable performance in high-pressure applications.
Inspection and Testing Methods
To ensure quality and reliability, ASTM A213 T9 boiler tubes undergo comprehensive testing, including:
Chemical Analysis
- Spectrometer testing to verify alloy composition
- Confirmation of chromium and molybdenum content
Mechanical Testing
- Tensile testing
- Yield strength testing
- Elongation testing
- Hardness testing
Non-Destructive Testing (NDT)
- Eddy current testing
- Ultrasonic testing
- Hydrostatic testing
Dimensional Inspection
- Outside diameter measurement
- Wall thickness inspection
- Length verification
- Straightness inspection
Additional Tests (According to Customer Requirements)
- Flattening test
- Flaring test
- Grain size examination
- Intergranular corrosion testing (when specified)
Advantages of ASTM A213 T9 Heat Exchanger Tubes
- Excellent high-temperature oxidation resistance
- Superior creep strength compared with carbon steel tubes
- Good resistance to thermal cycling
- High-pressure steam service capability
- Long operational life in demanding environments
- Stable performance in refinery and power plant applications
- Suitable for customized heat exchanger designs
Why Choose ASTM A213 T9 Boiler Tubes?
ASTM A213 T9 tubes provide an optimized combination of strength, corrosion resistance, and thermal stability for shell-and-tube heat exchangers operating under severe conditions. Their chromium-molybdenum alloy structure allows them to withstand elevated temperatures and pressure environments where conventional steel tubes may experience premature degradation.
For manufacturers and operators of boilers, petrochemical equipment, and industrial heat exchangers, ASTM A213 T9 seamless tubes are a reliable solution for improving heat transfer efficiency, reducing downtime, and ensuring long-term equipment performance.
