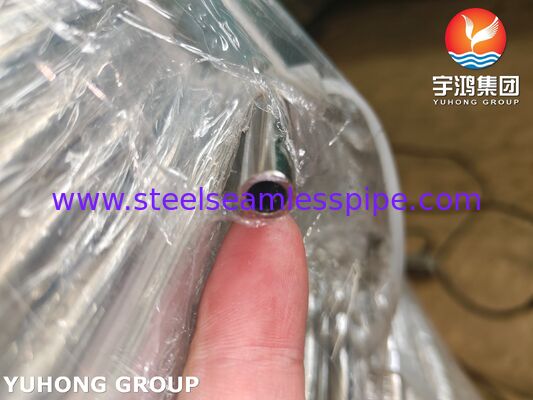

ASTM A269 TP316L Stainless Steel Seamless Coil Tube
ASTM A269 TP316L stainless steel seamless coil tube is manufactured from austenitic stainless steel grade TP316L and supplied in continuous coiled form for applications requiring controlled tube dimensions, corrosion-resistant stainless steel material and compact heat-transfer or process piping arrangements.
ASTM A269/A269M covers nominal-wall-thickness seamless and welded austenitic stainless steel tubing for general corrosion-resisting and low- or high-temperature service. TP316L is identified as UNS S31603 under the specification. The standard also specifies requirements for chemical composition, heat treatment, mechanical testing, hardness and nondestructive electric or hydrostatic testing.

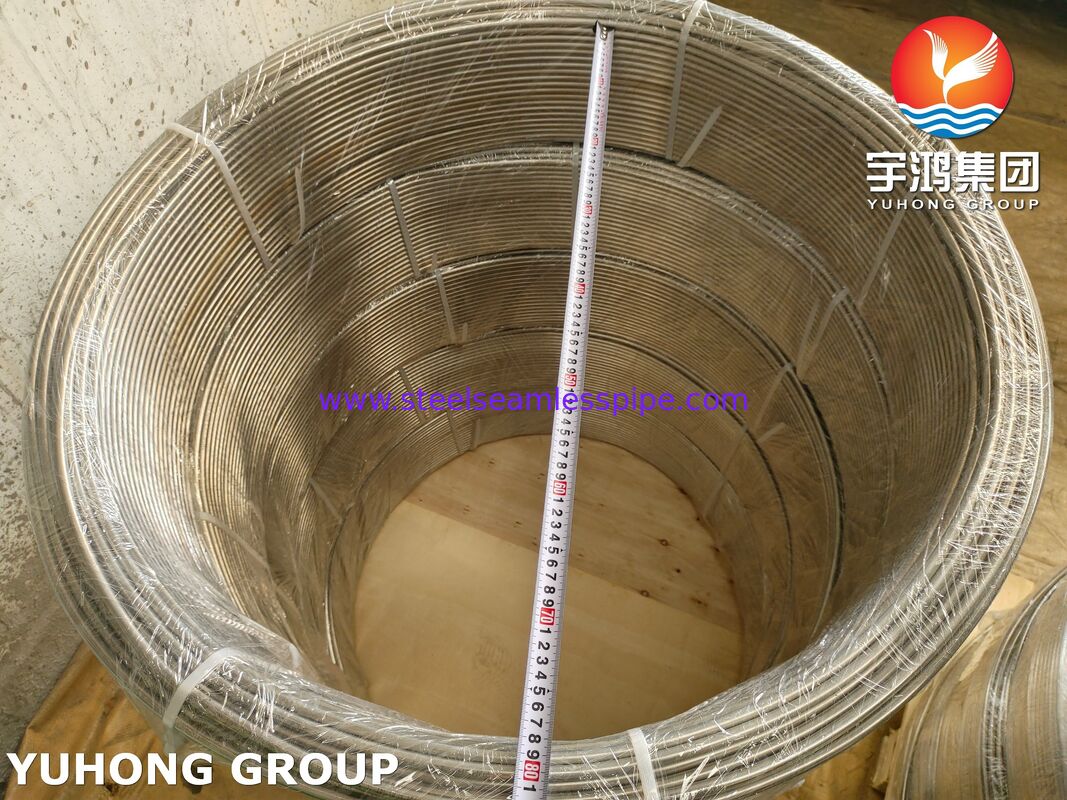

The coiled configuration allows long continuous tube lengths with fewer intermediate connections compared with multiple straight tube sections. This makes TP316L coil tube suitable for heat exchanger coils, condenser tubing, process equipment, instrumentation systems and other applications where continuous tubing is required.
The tube can be supplied with customized outside diameter, wall thickness, coil diameter, coil length and end configuration according to project requirements.
Product Specifications
| Item |
Specification |
| Product Name |
TP316L Stainless Steel Coil Tube |
| Standard |
ASTM A269 / A269M |
| Grade |
TP316L |
| UNS |
S31603 |
| Material |
Austenitic Stainless Steel |
| Manufacturing |
Seamless |
| Tube Form |
Coiled Tube |
| Surface |
Annealed / Pickled / Bright Annealed, as required |
| Outside Diameter |
Customized |
| Wall Thickness |
Customized |
| Coil Diameter |
Customized |
| Coil Length |
Customized |
| Heat Treatment |
Solution Heat Treated |
| End Finish |
Plain Ends / Customized |
| NDT |
Eddy Current or Hydrostatic Testing |
| Certification |
EN 10204 3.1 MTC, if specified |
| Packaging |
Wooden Cases / Steel Frame / Suitable Export Packaging |
ASTM A269 specifies that the tubing is furnished in the heat-treated condition and provides requirements for mechanical and nondestructive testing.
Chemical Composition
ASTM A269 TP316L Chemical Composition
| Element |
TP316L Requirement |
| Carbon (C) |
≤ 0.035% |
| Manganese (Mn) |
≤ 2.00% |
| Silicon (Si) |
≤ 1.00% |
| Phosphorus (P) |
≤ 0.045% |
| Sulfur (S) |
≤ 0.030% |
| Chromium (Cr) |
16.0–18.0% |
| Nickel (Ni) |
10.0–14.0% |
| Molybdenum (Mo) |
2.0–3.0% |
| Iron (Fe) |
Balance |
Mechanical Properties
| Property |
Requirement |
| Tensile Strength |
≥ 70 ksi / 485 MPa |
| Yield Strength |
≥ 25 ksi / 170 MPa |
| Elongation |
≥ 35% |
| Hardness |
According to ASTM A269 requirements |
Manufacturing Process
Manufacturing Process of TP316L Seamless Coil Tube
Stainless Steel Billet → Heating → Piercing → Hot Rolling → Cold Drawing / Cold Rolling → Heat Treatment → Descaling / Pickling → Straightening → Eddy Current / Hydrostatic Testing → Coiling → Dimensional Inspection → Final Inspection → Packaging
- Seamless manufacturing
- Cold drawing
- Solution heat treatment
- Surface treatment
- Eddy current testing
- Dimensional inspection
- Coil forming
- Final inspection
Coil Tube Dimensions
Customized Coil Tube Dimensions
ASTM A269 TP316L coil tube can be supplied according to project-specific requirements.
| Dimension |
Available Options |
| Outside Diameter |
Customized |
| Wall Thickness |
Customized |
| Inside Diameter |
According to OD and WT |
| Coil Outside Diameter |
Customized |
| Coil Inside Diameter |
Customized |
| Coil Pitch |
Customized |
| Straight Length |
Customized |
| Total Coil Length |
Customized |
| Tube End Length |
Customized |
| Coil Direction |
As Required |
Applications
Heat Exchanger
- Heat exchanger coils
- Process heat exchanger tubing
- Compact heat transfer equipment
- Heat exchanger replacement tubing
Condenser
- Condenser coil tubing
- Industrial condenser systems
- Process cooling equipment
Chemical Processing
- Process equipment
- Corrosion-resistant tubing systems
- Chemical processing equipment
- Fluid transfer systems
Instrumentation and Process Systems
- Instrumentation tubing
- Process control systems
- Sampling systems
- Continuous tubing applications
Inspection & Testing
Quality Inspection
Each ASTM A269 TP316L coil tube can be inspected according to the applicable specification and purchase order requirements.
- Chemical Composition Analysis
- Tensile Test
- Yield Strength Test
- Elongation Test
- Hardness Test
- Eddy Current Testing
- Hydrostatic Test

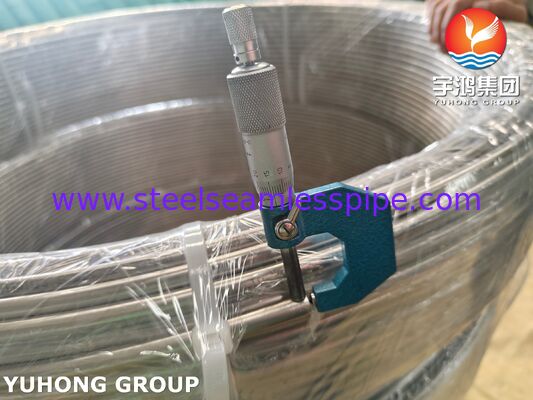

- Dimensional Inspection
- Outside Diameter Inspection
- Wall Thickness Inspection

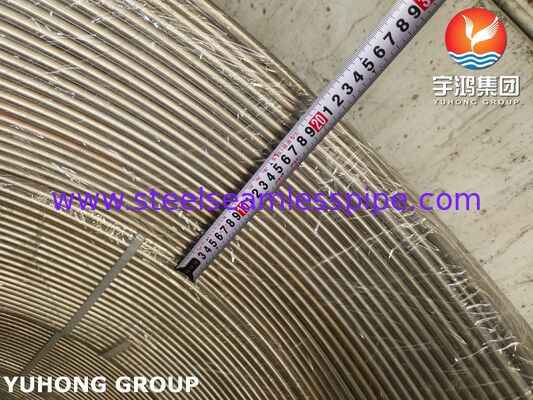

- Coil Diameter Inspection
- Coil Length Inspection
- Surface Inspection
- Visual Inspection
- Heat Number Traceability
- PMI, if specified
- EN 10204 3.1 Material Test Certificate, if required
ASTM A269 requires each tube to undergo a nondestructive electric test or hydrostatic test, while additional testing requirements may apply depending on the application and purchase order.
Surface and End Options
Surface Options
Depending on the manufacturing route and customer requirements:
- Annealed
- Pickled
- Bright Annealed
- Mill Finished
- Polished, when required
End Options
- Plain Ends
- Capped Ends
- Cut Ends
- Extended Straight Ends
- Customized End Preparation
Customized Supply
Customized ASTM A269 TP316L Coil Tube
We can supply TP316L stainless steel coil tubes according to project specifications, including:
- Tube outside diameter
- Wall thickness
- Coil diameter
- Coil length
- Straight end length
- Surface condition
- Heat treatment condition
- NDT requirements
- Testing requirements
- Material certification
- Packaging requirements
For project orders, dimensional tolerances, testing requirements, coil configuration and documentation can be specified according to the applicable ASTM specification and purchase order.
Packaging
Packaging
TP316L coil tubes are prepared for transportation according to tube dimensions, coil configuration and shipment requirements.
Typical packaging includes:
- Steel frame packaging
- Wooden cases
- Plywood cases
- Protective end caps
- Moisture protection
- Coil identification tags
- Heat number marking
- Product specification marking
For export orders, the packaging method can be customized according to container loading and transportation requirements.
Custom Attributes
| Attribute Name |
Attribute Value |
| Standard |
ASTM A269 / A269M |
| Grade |
TP316L / UNS S31603 |
| Material |
316L Austenitic Stainless Steel |
| Type |
Seamless Coil Tube |
| Tube Form |
Continuous Coiled Tubing |
| OD & WT |
Customized |
| Coil Size |
Customized Diameter and Length |
| Inspection |
ET / Hydrostatic Test / Mechanical Testing |
