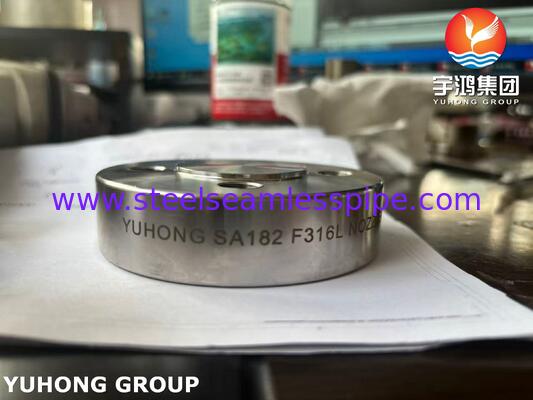

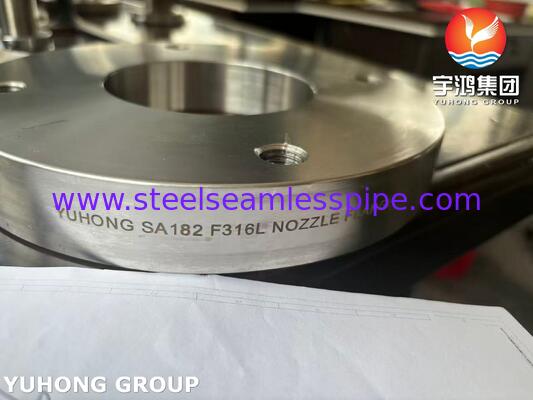

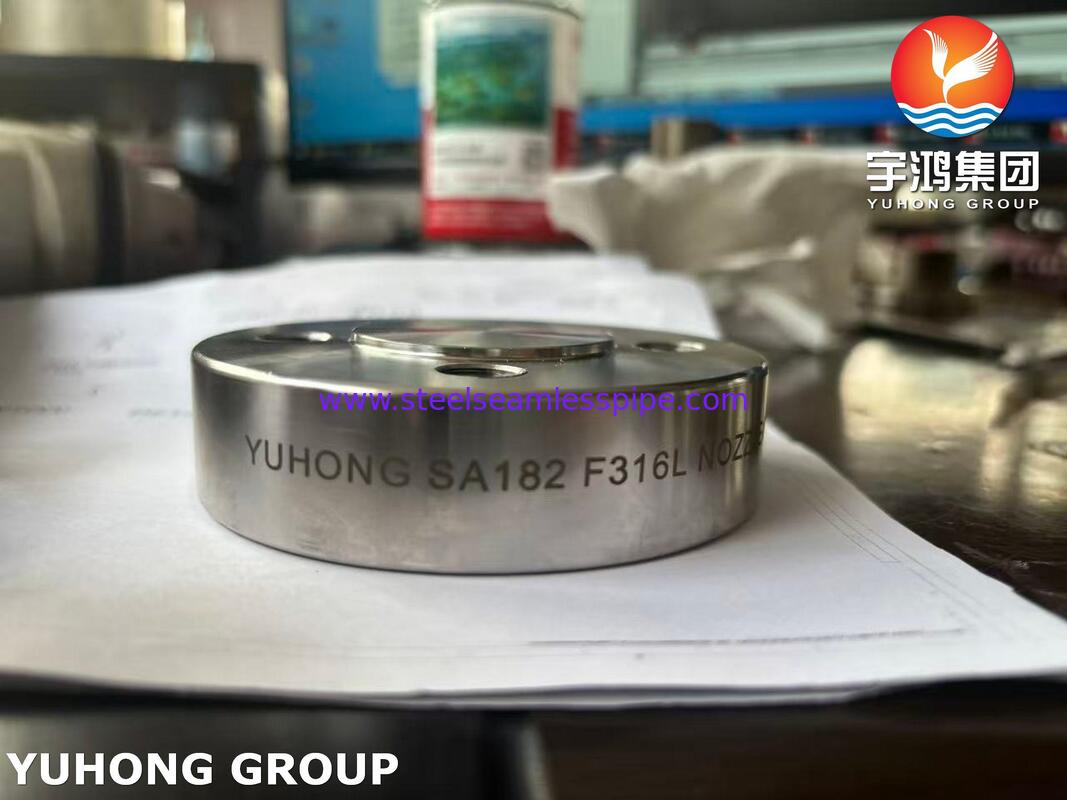

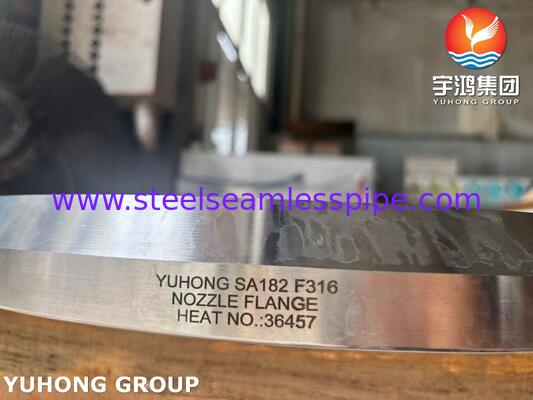

ASME SA182 F316L Stainless Steel Flange Forged Nozzle Flange for Pressure Vessel

ASTM A182/ ASME SA182 F316L Stainless Steel Nozzle Flange Steel Forgings for Pressure Vessels

ASME SA182 F316L Stainless Steel Forged Nozzle Flange is a pressure-retaining, circular metallic connector manufactured by hot mechanical deformation (forging) from low-carbon austenitic stainless steel (Grade 316L), conforming to the ASME SA-182 material specification. It is designed to be permanently welded (as a neck/nozzle) or bolted to the shell or head of a pressure vessel, providing a standardized, leak-proof interface for attaching piping systems, instrumentation, or access openings, while withstanding internal pressure, external loads, and corrosive process media.

Key Advantages for Pressure Vessel Application

• Excellent Corrosion Resistance: The 2-3% Molybdenum content provides superior resistance to pitting and crevice corrosion from chlorides, acids (sulfuric, acetic), and seawater environments.

• High Weldability: The low carbon content (0.03% max) prevents carbide precipitation at grain boundaries during welding (sensitization), eliminating the need for post-weld annealing in most thin sections.

• Low-Temperature Toughness: Maintains excellent impact properties even at cryogenic temperatures (-196°C / -320°F).

• Resistance to Oxidation: Operates reliably up to approximately 870°C (1600°F) in intermittent service.

Equivalent Materials of ASME SA182 F316L Stainless Steel Flange Forged Nozzle Flange for Pressure Vessel

Chemical Composition % of ASME SA182 F316L Stainless Steel Flange Forged Nozzle Flange for Pressure Vessel

Inspection & Non-Destructive Examination (NDE)

Per ASME SA182 and customer specifications, the following tests are mandatory or optional:

• PMI (Positive Material Identification) – to verify chemical composition (XRF).

• Hydrostatic Test – to confirm pressure integrity (usually performed on the final welded vessel, but flange forging is tested for soundness).

• Ultrasonic Test (UT) – for detecting internal laminations or voids (per SA-388).

• Liquid Penetrant Examination (PT) – for detecting surface defects on the machined flange faces and hub.

• Dimensional Check – verifying bolt circle, diameter, thickness, hub angle, and concentricity.

Application

• Oil & Gas (offshore and onshore platforms)

• Petrochemical refineries (distillation columns, reactors)

• Chemical processing (handling organic acids)

• Pharmaceutical and Food processing (sanitary versions)

• Power generation (steam drums, heat exchangers)

• Desalination and marine equipment
