Product Overview

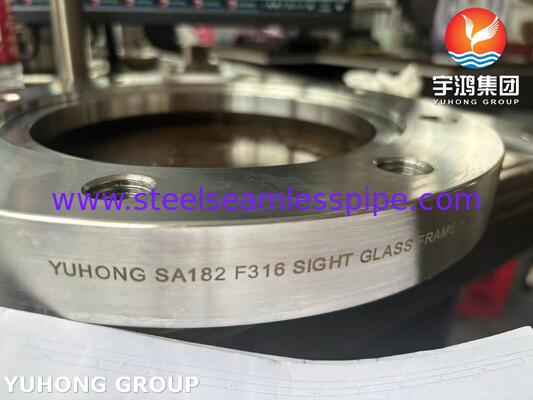

ASME SA182 F316 Stainless Steel Sight Glass Frame Flange is a forged and machined stainless steel component designed for sight glass assemblies, viewing ports and visual inspection equipment used in industrial process systems.

Manufactured from F316 austenitic stainless steel, the frame flange can be supplied with a central viewing opening, bolt holes, threaded holes, sealing surfaces and other machined features according to the customer's drawing.

The component is suitable for integration into process equipment, pressure vessels, piping systems, tanks, heat exchangers and other equipment where a sight glass or viewing window is required.

The flange configuration, dimensions, pressure rating and connection details are determined according to the equipment design, applicable flange standard and customer specification.

Product Specifications

F316 Stainless Steel Material

F316 is an austenitic stainless steel grade containing chromium, nickel and molybdenum.

The nominal alloy composition provides the material characteristics required for a wide range of industrial equipment applications. F316 is commonly specified for process equipment, piping components, valves, flanges and other fabricated or forged parts.

For products manufactured to ASME SA182 F316, chemical composition, mechanical properties and heat-treatment requirements shall comply with the applicable edition of ASME SA182 / ASTM A182 and the purchase specification.

Chemical Composition

Typical F316 chemical requirements under ASTM A182 are shown below:

The actual chemical composition shall be verified against the applicable ASME SA182 edition and material certificate for the supplied heat.

Mechanical Properties

The mechanical properties of ASME SA182 F316 forgings shall meet the requirements of the applicable material specification.

The final certified values should be taken from the MTC for the actual heat and product condition.

Sight Glass Frame Flange Design

The sight glass frame flange is designed to provide a mechanical mounting and sealing interface for a sight glass assembly.

The typical structure consists of a circular forged body with a central viewing opening and mounting holes.

Central Viewing Opening

The internal opening is machined according to the required sight glass diameter and viewing area.

Flange Face

The flange face can be machined to the specified sealing configuration.

Bolt Holes

Bolt holes can be arranged according to the customer's equipment drawing or applicable flange dimensions.

Threaded Holes

Threaded holes can be supplied when the sight glass assembly uses threaded fastening or customized mounting arrangements.

Sealing Surface

The sealing surface can be machined according to the required gasket, glass and assembly configuration.

Flange Dimensions

The sight glass frame flange can be customized according to customer drawings.

Typical parameters include:

If the component is required to conform to a specific flange dimensional standard, the applicable standard should be specified separately in the purchase order.

Manufacturing Process

1. Raw Material

Certified F316 stainless steel forging stock is selected according to the required ASME SA182 specification.

2. Forging

The raw material is heated and forged into the required preliminary ring or flange shape.

3. Heat Treatment

Solution heat treatment is performed according to the applicable material specification.

4. Rough Machining

The forged component is rough machined to establish the main outside and inside dimensions.

5. CNC Machining

Precision machining is carried out for:

• Outside diameter
• Inside diameter
• Sight glass opening
• Flange face
• Bolt holes
• Threaded holes
• Sealing grooves
• Counterbores

6. Surface Finishing

The machined component can be supplied with the specified surface condition.

7. Final Inspection

Final dimensions, hole positions, material identification and surface condition are inspected before shipment.

Machining Capability

The F316 sight glass frame flange can be CNC machined according to customer drawings.

Machining may include:

• Turning
• Face machining
• Boring
• Drilling
• Tapping
• Groove machining
• Counterboring
• Chamfering
• Precision finishing

The machining tolerance is controlled according to the customer's drawing and applicable dimensional requirements.

Quality Control

Material Inspection

• Heat number verification
• Chemical composition
• PMI
• Material identification
• Material certificate review

Mechanical Inspection

Where required:

• Tensile test
• Yield strength
• Elongation
• Hardness

Dimensional Inspection

Inspection can include:

• Outside diameter
• Inside diameter
• Thickness
• Bolt-hole diameter
• Bolt-hole spacing
• Bolt circle diameter
• Thread dimensions
• Sealing face dimensions
• Groove dimensions
• Concentricity
• Flatness

Surface Inspection

The finished flange can be visually inspected for:

• Cracks
• Surface defects
• Machining damage
• Burrs
• Corrosion
• Improper finishing

Additional NDT can be performed according to project requirements.

Inspection Documents

The following documentation can be supplied according to customer requirements:

• Material Test Certificate
• EN 10204 3.1 Certificate
• EN 10204 3.2 Certificate
• Chemical Analysis Report
• Mechanical Test Report
• PMI Report
• Dimensional Inspection Report
• Heat Treatment Record
• NDT Report
• Certificate of Conformance
• Third-Party Inspection Report

Applications

Industrial Process Equipment

The F316 sight glass frame flange can be installed on process equipment where visual monitoring of the internal process is required.

Pressure Vessels

The component can be manufactured as part of a customized viewing port or sight glass assembly for pressure equipment.

Process Piping

Sight glass flange assemblies can be used in selected piping systems to provide visual observation of process flow.

Chemical Processing Equipment

F316 stainless steel is commonly specified for process equipment where an austenitic stainless steel containing molybdenum is required.

Heat Exchangers and Condensers

The component can be incorporated into customized heat exchanger or condenser assemblies requiring a visual inspection port.

Tanks and Vessels

Applications may include storage tanks, process tanks and vessels fitted with viewing windows.

Marine and Industrial Equipment

The F316 sight glass frame flange can be manufactured for marine and industrial equipment according to the applicable service conditions and design requirements.
