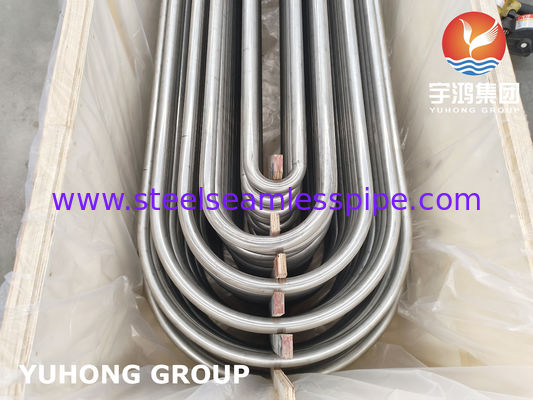

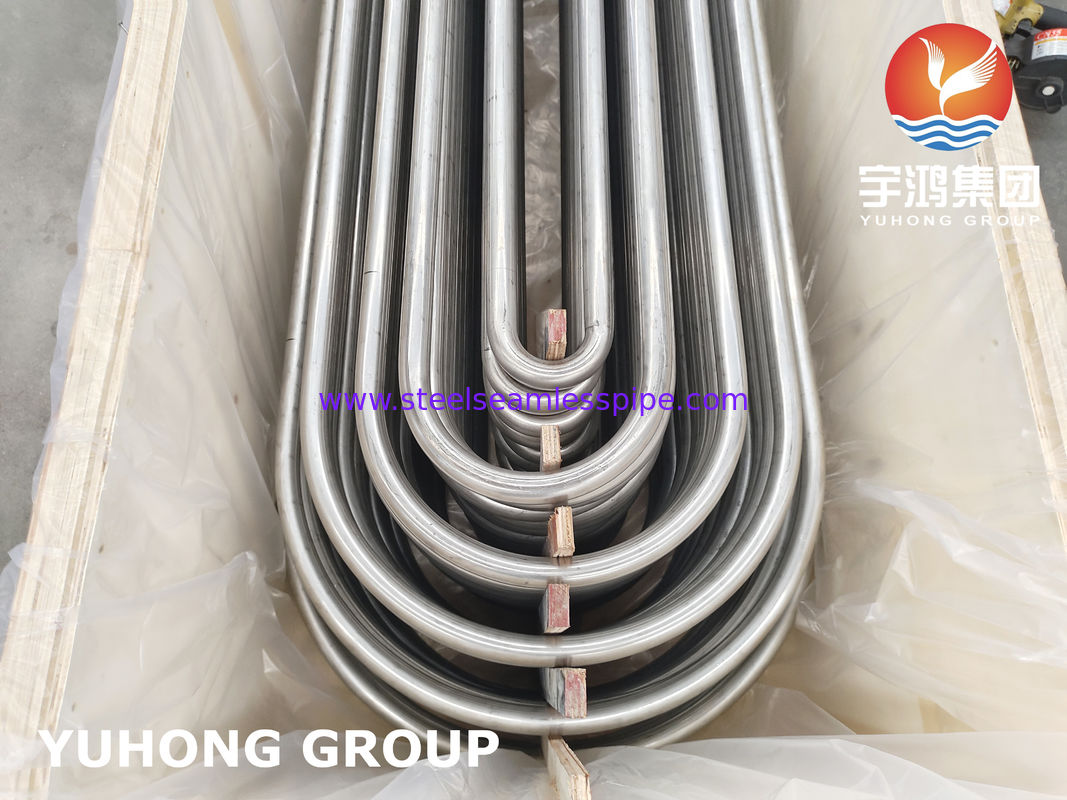

ASTM A213 TP304 Stainless Steel Seamless U Bend Tube with Bright Annealed Finish and Customized Bend Radius

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	EN 10204 3.1 OR 3.2 /PED 2014/68/EU/ISO 9001
Model Number:	Stainless Steel U Bend Tube

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T,L/C AT SIGHT
Supply Ability:	1500 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (353)

Stainless Steel Seamless Tube (349)

Duplex Stainless Steel Pipe (139)

Duplex Stainless Steel Tube (39)

Needle Tube (175)

Fin Tube (757)

Heat Exchanger (45)

Heat Exchanger Tube (482)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (132)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (136)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (110)

Copper Alloy Tube (258)

Alloy Steel Tube (229)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (166)

Steel Fitting (886)

Steel Flange (688)

Others (413)

Cladding Parts (9)

Detailed Product Description

Material Grade:	TP304 / UNS S30400	Tube Shape:	U-Tube
Bend Radius:	Customized	Manufacturing:	Seamless
Surface Finish:	Bright Annealed / Pickled / Polished	Outside Diameter:	Customized
Wall Thickness:	Customized / BWG	Heat Treatment:	Solution Annealed / As Required
Highlight:	Bright Annealed U Bend Tube , Customized Stainless Steel U Bend Tube

ASTM A213 TP304 Stainless Steel Seamless U Bend Tube | Bright Annealed Heat Exchanger Tube

ASTM A213 / ASME SA213 TP304 Stainless Steel Seamless U Bend Tube

Product Overview

ASTM A213 / ASME SA213 TP304 Stainless Steel Seamless U Bend Tube is designed for heat exchangers, condensers, boilers and other industrial thermal equipment requiring stainless steel tubing with a U-bend configuration.

TP304 stainless steel provides good corrosion resistance and mechanical properties for a wide range of industrial heat-transfer applications. The seamless tube construction offers a uniform tubular structure, while the U-bend design allows the tube bundle to accommodate thermal expansion without requiring additional expansion joints.

YUHONG supplies TP304 seamless U bend tubes with customized tube dimensions, bend radius and leg length according to customer drawings, heat exchanger designs and project specifications.

Product Specifications

Item	Specification
Product Name	TP304 Stainless Steel Seamless U Bend Tube
Material Grade	ASTM A213 TP304 / UNS S30400
Manufacturing	Seamless
Standard	ASTM A213 / ASME SA213
Tube Type	U Bend Tube / U-Tube
Surface Finish	Bright Annealed, Annealed & Pickled, Polished
Outside Diameter	Customized
Wall Thickness	Customized / BWG
Bend Radius	Customized
Leg Length	Customized
Heat Treatment	Solution Annealed / As Required
Testing	Eddy Current / Hydrostatic / UT as Required
Inspection Document	EN 10204 3.1 / 3.2 Available

Key Features

ASTM A213 / ASME SA213 TP304 stainless steel material
Seamless tube construction for industrial heat-transfer applications
U-bend configuration suitable for shell-and-tube heat exchangers
Bright annealed surface available for selected requirements
Customized bend radius, tube length and leg length
Various outside diameters and wall thicknesses available
Suitable for heat exchangers, condensers and thermal equipment
Non-destructive testing and inspection documentation available

U Bend Tube Design

The U-bend section is formed according to the required bend radius and heat exchanger configuration. Tube OD, wall thickness, center-to-center dimension, straight leg length and overall U-tube dimensions can be supplied according to customer drawings.

Proper control of the bending process helps maintain tube geometry and minimize deformation in the bend area. Post-bending heat treatment can also be arranged according to the applicable specification and project requirements.

Surface Finish Options

Bright Annealed
Bright annealing provides a clean and smooth metallic surface after controlled heat treatment. It is available when the project specification requires a bright surface condition and controlled oxidation during heat treatment.

Annealed & Pickled
Annealing followed by pickling can be supplied where a conventional stainless steel surface condition is acceptable.

Polished Surface
Mechanical polishing can be considered for applications requiring a smoother external surface, subject to tube dimensions and project requirements.

Applications

Heat Exchangers - TP304 seamless U-bend tubes are commonly used in shell-and-tube heat exchanger bundles. The U-tube configuration allows thermal expansion within the tube bundle and provides a compact heat-transfer arrangement.
Condensers - The tubes can be used in condenser equipment for industrial process systems where TP304 stainless steel is suitable for the operating medium and temperature.
Boilers and Heating Equipment - U-bend stainless steel tubes can be supplied for selected boiler, heater and thermal-processing equipment according to the required design conditions.
Chemical and Process Equipment - TP304 U-tubes are also suitable for selected chemical and industrial process equipment where corrosion resistance and heat-transfer performance are required.

Custom U Bend Tube Supply

U-bend dimensions can be manufactured according to customer drawings or heat exchanger specifications, including:

Tube outside diameter
Wall thickness
U-bend radius
Straight leg length
Center-to-center distance
Overall tube length
U-bend orientation
Tube end preparation

For large heat exchanger projects, dimensional requirements can be reviewed based on the customer's tube bundle drawings and technical specifications.

Inspection and Testing

Depending on the applicable standard and purchase specification, TP304 seamless U bend tubes can be supplied with:

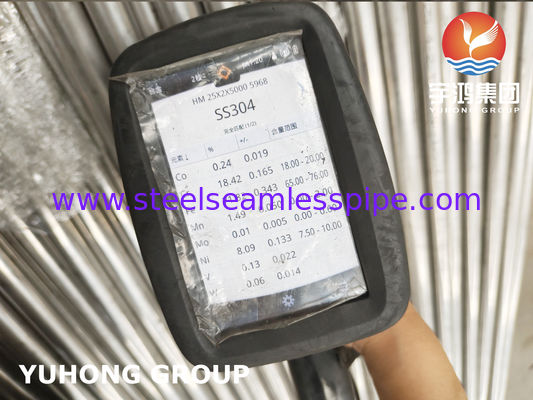

Chemical composition testing
Mechanical property testing
Hardness testing where applicable
Hydrostatic or pneumatic testing
Eddy current testing
Ultrasonic testing where specified

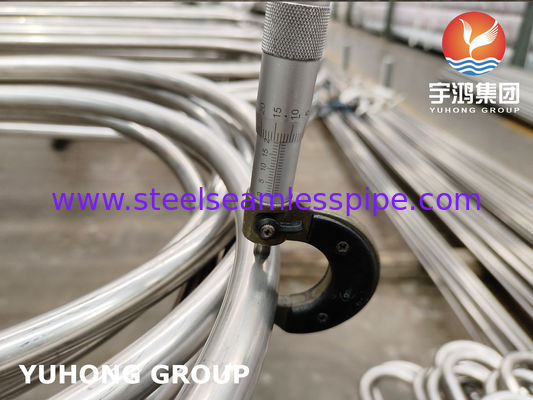

Dimensional inspection
Visual and surface inspection
Heat treatment records
Material Test Certificate (MTC)

EN 10204 3.1 / 3.2 inspection documentation can be provided according to project requirements.

Typical Supply Range

The supply range can be customized according to the heat exchanger design. Commonly specified parameters include:

Material	TP304 / UNS S30400
Standard	ASTM A213 / ASME SA213
Tube Type	Seamless U-Tube
Surface	Bright Annealed / Pickled / Polished
OD	According to customer specification
Wall Thickness	According to customer specification
Bend Radius	According to drawing
Length	According to heat exchanger design

Packaging

U bend tubes are carefully protected against deformation and surface damage during handling and transportation. Suitable packaging can include wooden cases, wooden frames, protective materials and seaworthy packing according to tube dimensions and shipping requirements.

Why Choose YUHONG

Experience in stainless steel heat exchanger tube supply
ASTM A213 / ASME SA213 material options
Customized seamless U-bend tube dimensions
Bright annealed surface option
Support for customer drawings and technical specifications
Inspection and testing according to project requirements
EN 10204 3.1 / 3.2 documentation available

Frequently Asked Questions

What is ASTM A213 TP304 U bend tube?

It is a seamless TP304 stainless steel tube manufactured to ASTM A213 requirements and formed into a U-shaped configuration for applications such as heat exchangers and condensers.

Can the U-bend radius be customized?

Yes. The bend radius, straight leg length, center-to-center distance and other dimensions can be produced according to customer drawings or heat exchanger specifications.

Is TP304 U bend tube seamless?

Yes. This product is supplied as a seamless stainless steel U-bend tube according to the applicable ASTM A213 / ASME SA213 requirements.

What surface finishes are available?

Bright annealed, annealed and pickled, and polished surface options can be considered according to the application and technical specification.

Can inspection certificates be provided?

Yes. Material Test Certificates and EN 10204 3.1 / 3.2 documentation can be provided according to the purchase order and inspection requirements.
