Product Introduction of ASTM A335 P9 Base Tube + CS Studded Fin Tube

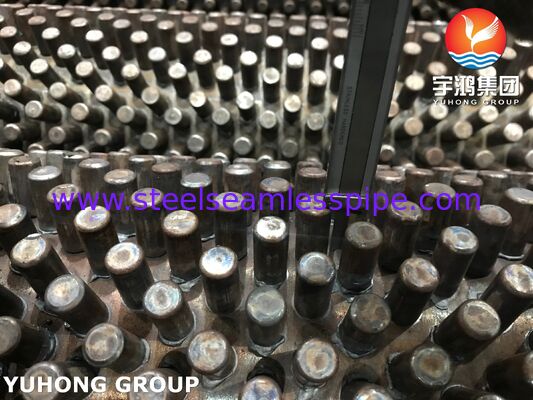

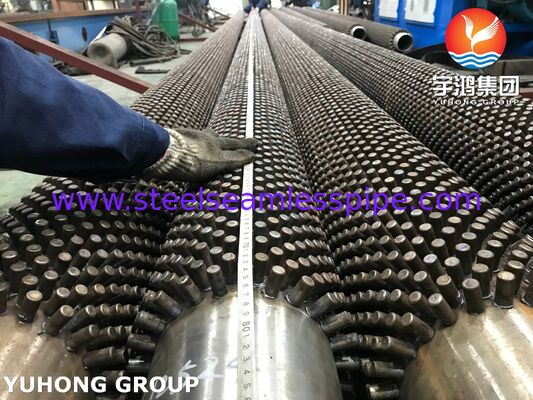

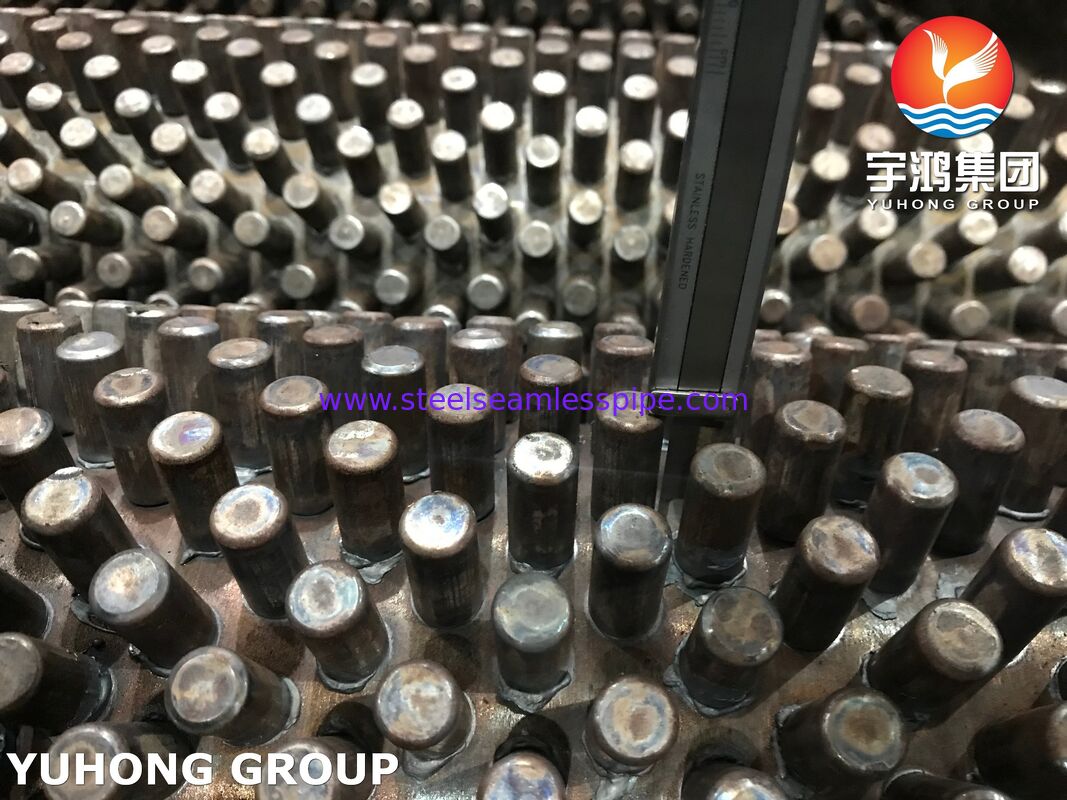

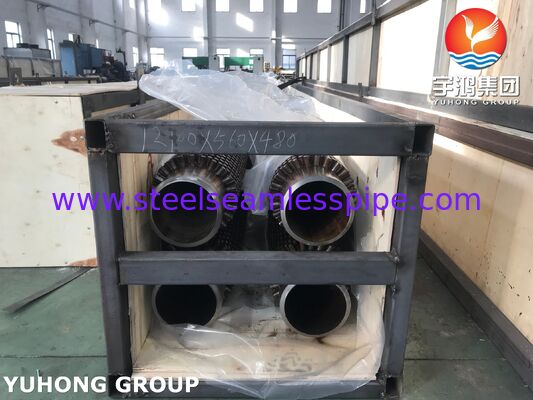

Studded fin tubes (also known as studded tubes, pin tubes, or nail-head fin tubes) are high-performance extended-surface heat transfer components. They consist of a seamless base tube with solid cylindrical metal studs (nail heads) resistance-welded onto the outer surface in precise rows or patterns.
Our ASTM A335 P9 alloy steel studded fin tubes with carbon steel (CS) studs are specifically engineered for high-temperature, high-pressure, and severe fouling environments. The combination of a chrome-molybdenum alloy base tube and durable carbon steel studs delivers excellent heat transfer efficiency (surface area increased 2–3 times compared to bare tubes), superior mechanical strength, and outstanding resistance to abrasion, corrosion, and thermal cycling.
These tubes are ideal for applications where conventional finned tubes may fail due to fouling, erosion, or aggressive flue gases.
Structure of ASTM A335 P9 Studded Fin Tube (Base Tube, Studs & Welding Process)
- Base Tube: Seamless ferritic alloy-steel pipe manufactured to ASTM A335 / ASME SA335 Grade P9.
- Studs (Fins): Solid cylindrical carbon steel pins (typically Q235B or equivalent CS grade) arranged in square, hexagonal, or staggered patterns.
- Manufacturing Process: Automated electrical resistance welding (ERW / resistance stud welding). An electric current generates localized heat at the stud-to-tube interface, forging a full metallurgical bond without filler metal. Key process controls include weld penetration ≥1.5 mm, root protrusion ≤1 mm, and minimal heat-affected zone to preserve base tube integrity.
The resulting structure provides high rigidity, turbulence promotion for enhanced gas-side heat transfer, and easy mechanical cleaning capability.
Chemical Composition of ASTM A335 P9 Base Tube and Carbon Steel Studs
ASTM A335 P9 Base Tube Chemical Composition (%)
| Element |
Composition (%) |
| Carbon (C) |
≤ 0.15 |
| Manganese (Mn) |
0.30 – 0.60 |
| Phosphorus (P) |
≤ 0.025 |
| Sulfur (S) |
≤ 0.025 |
| Silicon (Si) |
0.25 – 1.00 |
| Chromium (Cr) |
8.00 – 10.00 |
| Molybdenum (Mo) |
0.90 – 1.10 |
Carbon Steel (CS) Studs Typical Chemical Composition (Q235B / Equivalent)
| Element |
Composition (%) |
| Carbon (C) |
≤ 0.20 |
| Silicon (Si) |
≤ 0.35 |
| Manganese (Mn) |
≤ 1.40 |
| Phosphorus (P) |
≤ 0.045 |
| Sulfur (S) |
≤ 0.045 |
Dimensional Range and Tolerances of ASTM A335 P9 + CS Studded Fin Tube
| Parameter |
Standard Range |
Typical Tolerance / Notes |
| Base Tube OD |
25 – 219 mm (up to 273 mm) |
Seamless |
| Base Tube Wall Thickness |
3.5 – 28.6 mm (or 4 – 20 mm) |
— |
| Tube Length |
Up to 18,000 – 25,000 mm |
Custom cut lengths available |
| Stud Diameter |
6 – 16 mm (up to 25.4 mm) |
Cylindrical / elliptical / lens type |
| Stud Height |
10 – 35 mm (up to 45 mm) |
±0.3 mm |
| Stud Pitch / Spacing |
8 – 30 mm |
±0.5 mm; square or staggered pattern |
| Stud Density |
120 – 400 studs/m² |
Adjustable |
| Bare Ends |
As per customer request (e.g., 50–100 mm each end) |
— |
| Weld Penetration |
≥ 1.5 mm |
Metallurgical bond |
| Weld Protrusion |
≤ 1 mm |
No-spatter standard |
Custom dimensions and patterns are available according to client drawings or project specifications.
Performance Advantages of ASTM A335 P9 Studded Fin Tube with CS Studs
- Heat transfer surface area increased 2–3 times versus bare tubes, significantly improving gas-side heat transfer coefficient.
- Excellent resistance to fouling, abrasion, and erosion from dirty or particulate-laden flue gases.
- High mechanical strength and rigidity allow frequent aggressive cleaning (e.g., high-pressure water or shot blasting) without damage.
- Superior high-temperature performance (suitable up to approximately 550–600°C depending on service conditions) with good oxidation and sulfidation resistance from the P9 alloy base.
- Strong metallurgical bond between studs and tube ensures long service life under thermal cycling and vibration.
- Lower pressure drop compared with dense continuous fin designs in certain configurations while maintaining high efficiency.
Detailed Application Fields of ASTM A335 P9 + CS Studded Fin Tubes
- Petrochemical and refinery fired heaters (convection sections, crude heaters, process heaters)
- Waste heat recovery units (WHRU) and economizers
- Circulating fluidized bed (CFB) boilers and biomass boilers
- Power plant boilers, superheaters, and air preheaters
- Chemical process heaters and reactors
- Incinerators and waste-to-energy plants
- Steel plant and other high-temperature industrial furnaces
These tubes are preferred where flue gas is corrosive, abrasive, or heavily fouling.
Our Manufacturing Advantages and Experience with ASTM A335 P9 Studded Fin Tubes
As a professional manufacturer and exporter of heat-transfer tubes, we specialize in high-quality studded fin tubes using advanced automated resistance welding equipment. We maintain strict process control for weld quality, dimensional accuracy, and material certification (EN 10204 3.1 / 3.2 available).
Our production capabilities support full customization of stud size, height, pitch, pattern, and tube length to match exact project requirements. All products undergo comprehensive inspection including visual, dimensional, and non-destructive testing. We have extensive experience supplying ASTM A335 P9 + CS studded fin tubes to petrochemical, power, and industrial clients worldwide, ensuring reliable performance in the most demanding high-temperature and fouling environments.
For quotations, technical drawings, or customized solutions, please contact us with your specific requirements.
