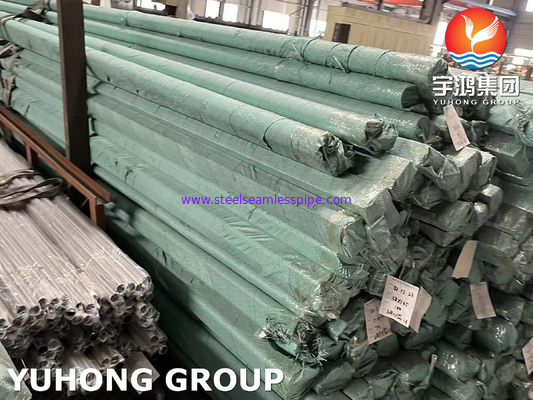

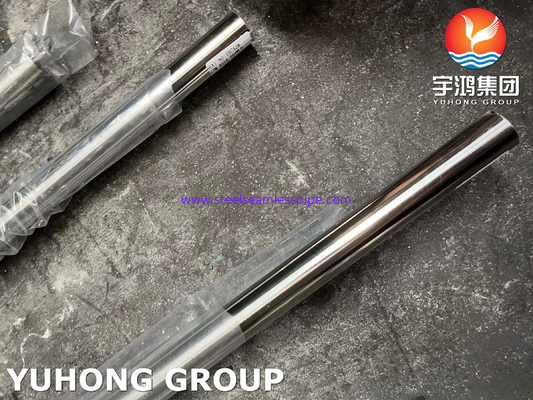

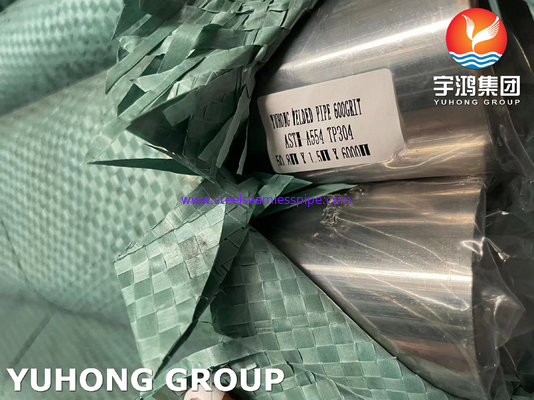

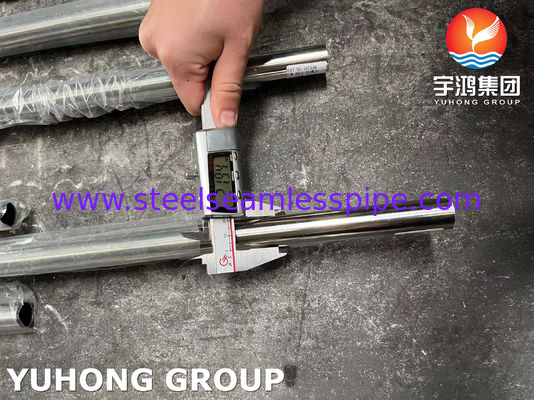

ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed

ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed

  • ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed
  • ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed
  • ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed
  • ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed
ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A554 TP304
Payment & Shipping Terms:
Minimum Order Quantity: 1000KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C
Supply Ability: 1000 tons per month
Contact Now
Detailed Product Description
Specification: ASTM A554, ASME SA554 Grade: TP304/304L/316/316L
Type: Welded Non Destructive Test: Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213
Size Standard: ANSI B16.10 & B16.19 & Customized Application: Nuclear, Thermal And Solar Power Plants, Refinery And Petrochemicals, Oil And Gas
High Light:

TP304 Stainless Steel Welded Pipes

,

Bright Annealed Welded Round Pipe

,

ASTM A554 Welded Round Pipe

ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed


YUHONG Group is one of the largest suppliers for high quality ASTM A554 / ASME SA554 Pipes.

What is ASTM A554?


This guide covers standard specification for welded stainless steel tubing for mechanical applications where appearance, mechanical properties, or corrosion resistance is needed. The tubes shall be made from flat-rolled steel by an automatic welding process without the addition of filler metal. Tubes shall be furnished in one of the following shapes - round, square, rectangular, or special.

Heat analysis shall be performed wherein several grades of steel shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, titanium, columbium, and tantalum.

What is 304 stainless steel?
304 stainless steel is a common material in stainless steel with a density of 7.93 g/cm³, which is also called 18/8 stainless steel in the industry. High temperature resistant to 800℃, with good processing performance and high toughness, it is widely used in industry and furniture decoration industry and food and medical industry.

304 is a universal stainless steel, which is widely used to make equipment and parts that require good comprehensive performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel. 304 stainless steel is a grade of stainless steel produced in accordance with the American ASTM standard.

Advantages:

1. Corrosion resistance: TP304 stainless steel  pipe has excellent corrosion resistance and can resist erosion by various corrosive media, such as acids, alkalis, salts, etc.

2. High temperature resistance: TP304 stainless steel pipe has good high temperature resistance and can maintain good performance at high temperatures, such as when used in boilers, heat exchangers and other equipment.

3. High strength: TP304 stainless steel pipe has high strength and hardness and can withstand greater pressure and load.

4. Other properties: TP304 stainless steel pipe has good thermal conductivity, electromagnetic shielding, etc., and can be used in various situations where low temperature needs to be maintained or electromagnetic interference shielded.


Chemical Composition of ASTM A554 SS Welded Pipes

Grade
C max%
MN max%
P max%
S max%
NI%
CR%
MO%
TP304
0:08
2
0:04
0:03
8-11
18-20
-
TP304L
0035
2
0:04
0:03
8-13
18-20
-
TP316
0:08
2
0:04
0:03
10-14
16-18
2-3
TP316L
0035
2
0:04
0:03
10-15
16-18
2-3



ASTM A554 TP304 1.4301 Stainless Steel Welded Pipe Bright Annealed 0


Mechanical Properties of ASTM A554 SS Welded Pipes


Grade
Tensile strength mpa, (min)
Yield strength mpa, (min)
% Age extension in 50 mm gauge length min
Hardness (max)
bhn
rb
304
585
244
56
191
72
304L
585
210
56
191
72
316
615
245
57
197
75
316L
585
215
56
197
75




Dimensions Of ASTM A554 Welded Mechanical Steel Tubing O.D and I.D


 OD Size, in. (mm)OD, ±in.mmID, ±in.mm
ASTM A554 TP 304/304L Stainless Steel TubingUp to 3⁄32 (2.4), excl0.0010.030.0010.03
ASTM A554 TP 304/304L Stainless Steel Tubing3⁄32 to 3⁄16 (2.4 to 4.8), excl0.00150.0380.00150.038
ASTM A554 TP 304/304L Stainless Steel Tubing3⁄16 to 1⁄2 (4.8 to 12.7), excl0.0030.080.0050.13
ASTM A554 TP 304/304L Stainless Steel Tubing1⁄2 to 1 (12.7 to 25.4), excl0.0040.100.0060.15
ASTM A554 TP 304/304L Stainless Steel Tubing1 to 11⁄2 (25.4 to 38.1),excl0.0050.130.0070.18
ASTM A554 TP 304/304L Stainless Steel Tubing1 1⁄2 to 2 (38.1 to 50.8),excl0.0060.150.0080.20
ASTM A554 TP 304/304L Stainless Steel Tubing2 to 2 1⁄2 (50.8 to 63.5),excl0.0070.180.0100.25
ASTM A554 TP 304/304L Stainless Steel Tubing2 1⁄2 to 3 1⁄2 (63.5 to 88.9),excl0.0100.250.0140.36
ASTM A554 TP 304/304L Stainless Steel Tubing3 1⁄2 to 5 (88.9 to 127.0),incl0.0150.380.0200.51
ASTM A554 TP 304/304L Stainless Steel TubingOver 5 to 16 (127.0 to 406.4), incl0.00125 in./in. or mm/mm of cir-cumference0.0013 in./in. or mm/mm of cir-cumference




Applications:

-Nuclear, Thermal and Solar Power Plants
-Refinery and Petrochemicals
-Oil and Gas
-Chemicals and Fertilizers
-Pulp and Paper
-Cryogenic Services
-Pharmaceuticals
